Application

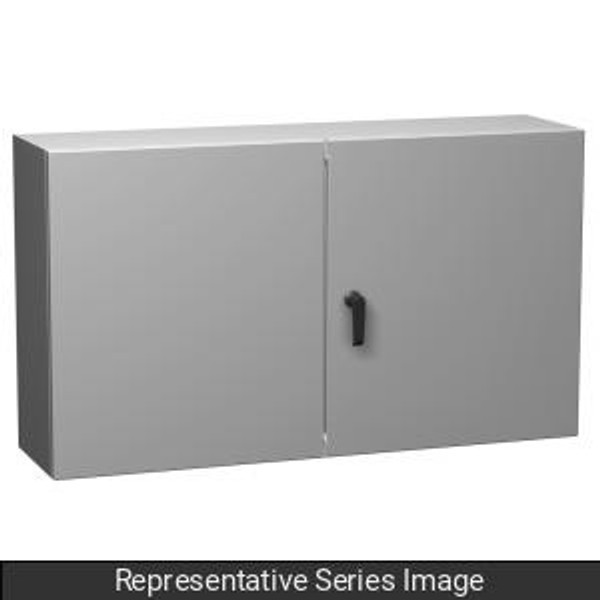

Designed to enclose electrical and/or electronic equipment and protect against harsh, industrial environments for wallmount applications. Impressive styling features like hidden hinges, attractive latching systems make the Eclipse a suitable addition to any high-tech equipment installation. A wide range of sizes and practical accessories make this product line a complete package.
Standards
UL 508A Type 12, 3R unless marked CSA Type 12, 3R Complies with NEMA 12, 3R IEC 60529, IP54
Construction
Formed 14 gauge steel. Smooth, continuously welded seams ground smooth. Door stiffeners are provided for increased strength and rigidity also designed to permit additional mounting options. Formed lip on enclosure to exclude flowing liquids and contaminants. Doors may be easily removed for modifications and are interchangeable. Oil resistant gaskets are permanently secured. Collar studs provided for mounting inner panel. Includes hardware kit with panel mounting nuts and sealing washers for wall mounting holes. Bonding stud provided on door and grounding stud installed in enclosure. Doors are secured with a three point key lockable handle. Hinges are constructed from 304 stainless steel. Key lockable handle is zinc diecast with black epoxy finish. Hinge pins are stainless steel. Door alignment guides provided on all doors.
Finish
Cover and enclosure are phosphatized and finished with a recoatable powder inside and out with choice of ANSI 61 smooth Gray (GY) or RAL7035 textured light gray (LG).
Specifications
