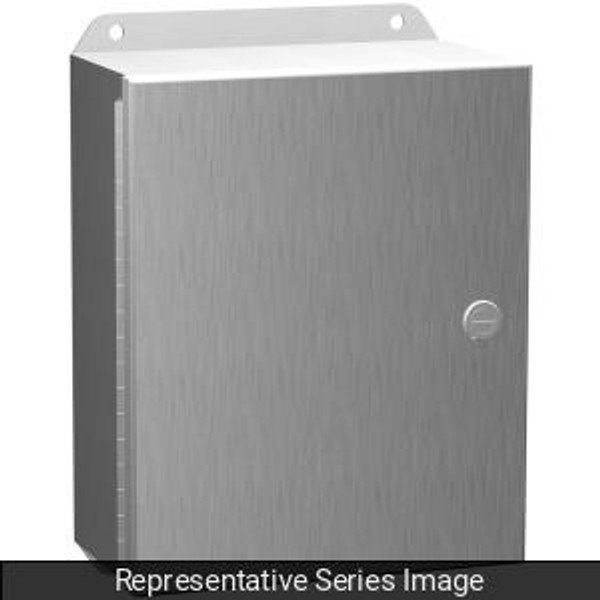

Hammond Manufacturing EJ16146AL Type 4X Continuous Hinge Door Aluminum Junction Box

Application

• Designed for use as instrument enclosures, electric, hydraulic or pneumatic control housings, electrical junction boxes or terminal wiring enclosures.
• Provides protection where equipment may be hosed down or otherwise be very wet, or in specific applications where corrosion may be a problem.

Standards

• UL 508A Type 3R, 4, 4X, 12, and 13
• CSA Type 3R, 4, 4X, 12, and 13
• Complies with
  • NEMA Type 3R, 4, 4X, 12 and 13
  • IEC 60529, IP66

Construction

• Formed from 0.08" Type 5052 H-32 aluminum.
• Smooth, continuously welded seams without knockouts, cutouts, or holes.
• Formed lip on enclosure to exclude flowing liquids and contaminants.
• Welded brackets provide for enclosure mounting.
• Continuously hinged cover has aluminum hinge and provides 180° opening.
• Door latches feature the added safety of quarter turn slot requiring use of tool for opening.
• Quarter turn latches formed from 316 stainless steel.
• Seamless poured-in place gasket.
• Models larger than 4"x4" include a removable 14 gauge galvanized inner panel.
• Tapped studs are provided for mounting inner panels.
• A bonding stud is provided on the door and a grounding stud is provided on the enclosure.
• Grounding and panel mounting hardware provided.

Finish

• Cover and enclosure are natural unfinished aluminum.
• Removable inner panel is unpainted galvanized steel.

Specifications
