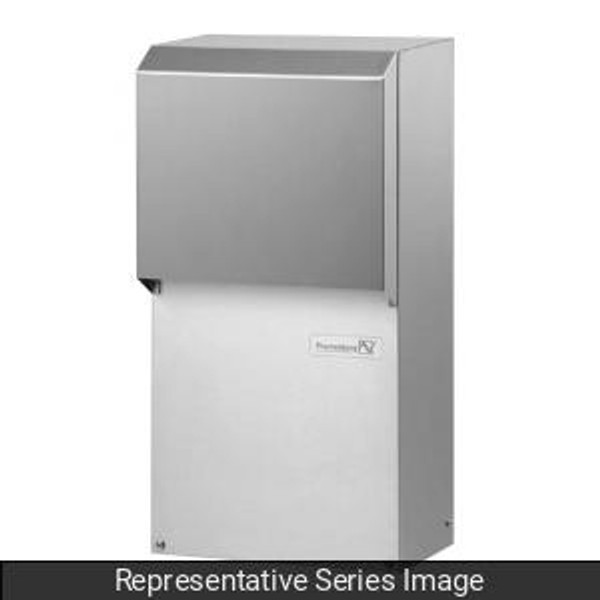

Hammond Manufacturing DTS3281A115N4SS Type 4X Side Mounting 4000-7000 BTU/H Outdoor Air Conditioner

Description

• Designed for side mounting on any enclosure surface where high capacity system cooling is required.
• Closed loop cooling ensures clean enclosure air is recirculated without ever mixing with contaminated ambient air.
• Optimum air circulation with maximum clearance distance between warm inlet and cold outlet for reduced hot spot locations.

Standards

• UL, cUL, CE
• Complies with
  • IP56
  • NEMA 3R, 4, 4X

Features

• R134a refrigerant.
• Thermostat control accessible from inside enclosure.
• Expansion valve prevents evaporator freeze up while minimizing heavy inrush currents on large BTU/H units.
• Built in condensate evaporator.
• Continuous air circulation from high capacity fans.
• EMI/RFI suppression meets CE.
• Self-diagnostics on startup.
• Fault indication via LED light.
• Provision for door contact allowing power down when enclosure door is opened.
• Gasket, mounting kit and template for enclosure cutout and drilling are included.
• Condensate drain hose and clamp provided.
• Nema 4/4x exterior 304 stainless steel.

Specifications
