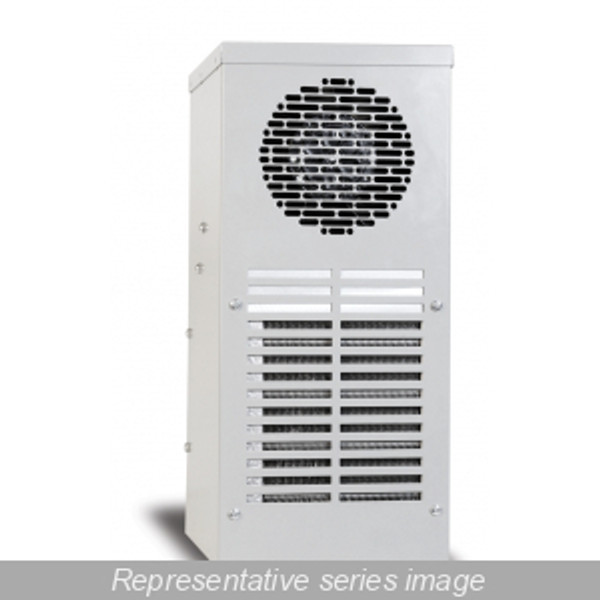

Designed for side mounting on any enclosure surface where high capacity system cooling is required. Closed loop cooling ensures clean enclosure air is recirculated without ever mixing with contaminated ambient air. Optimum air circulation with maximum clearance distance between warm inlet and cold outlet for reduced hot spot locations.
Standards
UL, cUL, CE Complies with IP56 NEMA 3R, 4
Features
R134a refrigerant. Thermostat control accessible from inside enclosure. Expansion valve prevents evaporator freeze up while minimizing heavy inrush currents on large BTU/H units. Direct condensate discharge via 1/4" NPT threaded port. Continuous air circulation from high capacity fans. EMI/RFI suppression meets CE. Provision for door contact allowing power down when enclosure door is opened. Gasket, mounting kit and template for enclosure cutout and drilling are included. Washable aluminum mesh filter.
Specifications
