Application

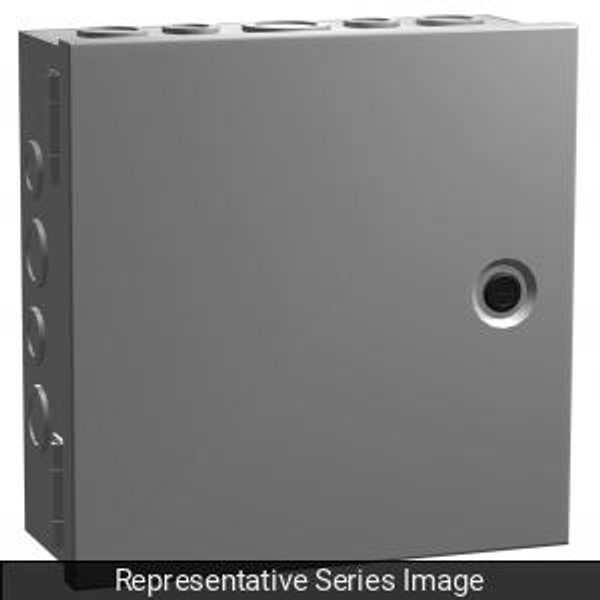

Designed for general purpose indoor commercial use as a junction, pull or switch box. Hinged cover with latch provides easy access during installation and maintenance.
Standards
UL-50 Type 1 CSA Type 1 Complies with NEMA Type 1 IEC 60529, IP20
Construction
Formed and spot welded from 16 gauge (up to 30"x24") or 14 gauge (36"x24") steel. Formed steel covers close by use of slotted quarter turn latch. Full swing door using butt hinges. Easily removed knockouts on all 4 sides (see drawings for sizes and locations). Through holes in back for wall mounting. Grounding location embossed in body.
Finish
Enclosure and cover are finished in ANSI 61 gray powder coating.
