Description
Features
- Available in 42U and 44U mounting heights.
- 24" Width Frame Features:
- Generous cabling space
- The cabinet top includes four (4) 3.5" wide cable entry holes.
- 30" Width Frame Features:
- Mounting rails include cable-tie support and cable pass-through holes.
- The cabinet top includes four (4) 3.5" wide cable entry holes.
- Support for vertical cable managers without obstructing mounting rails.
- Available in 31.5", 36" and 42" overall depths.
- C-channel struts provide cabinet strength, ease and flexibility to adjust mounting rails.
- Flush-mounted doors with quarter-turn lock.
- One (1) interchangeable top panel.
Specifications
- Cabinet frame constructed in 14-gauge mild steel with 12-gauge mild steel reinforced corner brackets.
- Cabinet doors and side panels constructed in 16-gauge steel.
- Square hole 19" mounting rails are constructed in 12-gauge steel, include rack unit indicators, and are Zinc-plated to provide superior surface areas for equipment grounding.
- UL Listed 2416 load rated for up to 3,000 lbs (1,360 kg). Static Load tested to 12,000 lbs (5,443 kg).
- Seismic rated up to 1,200 lbs (544 kg) of dynamic load with an Ip factor of 1.5 in accordance with the IBC 2018, CBC 2019, NBC 2015, ASCE 7-16 and ASCE 7-10. Requires a seismic bolt-down kit such as the C4K-Z4 (sold separately).
- Grounding studs are provided on the frame as well as side panels and doors. Front and rear studs on cabinet frame conform to PET.
- Finished in textured RAL9005 black powder paint.
- Meets PCI DSS (Payment Card Industry Data Security Standard) compliance requirements.
- TAA-compliant for GSA Schedule purchases.
- RoHS Compliant.
- Manufactured in North America within an ISO 9001:2015 certified facility.
Included Components
- All configurations include:
- Welded steel frame with factory-installed nylon levelling feet, ground studs, and mounting points for optional casters.
- Two (2) pairs of adjustable depth EIA compliant square hole punched mounting rails.
- Starter pack of CAGKIT1032-25 screws and cage nuts.
- Two (2) removable side panels (with 1/4 turn latches).
- One (1) four (4) fan cutout top panel.
- C4RR "D" Cabinet Specific Components include:
- One (1) window front door with a quarter-turn lock.
- One (1) perforated rear door (65% open area vented) with quarter-turn lock.
- One (1) vertical cable tray with button PDU mounting.

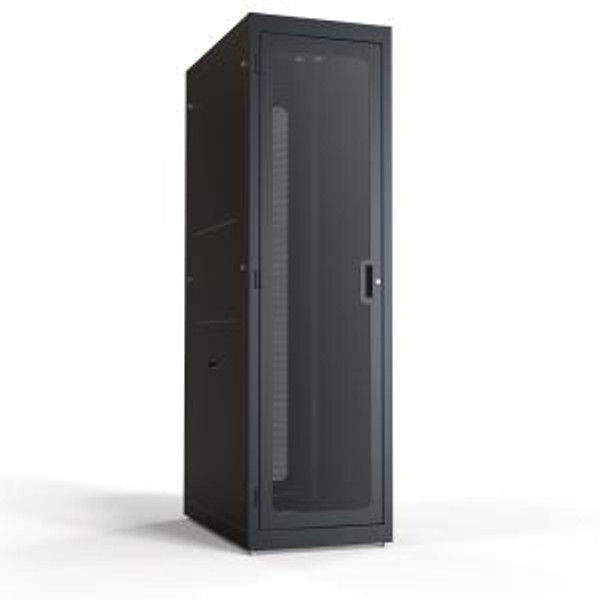

- C4RR "S" Cabinet Specific Components include:
- One (1) perforated front door (65% open area vented) with quarter-turn lock.
- One (1) perforated split/barn rear door (65% open area vented) with quarter-turn lock.
- Two (2) vertical cable trays with button PDU mounting.
Specifications
| Rack Units | 44 |
|---|---|
| Rack Type | Cabinet |
| Paint Color | RAL9005 Black |
| Rail Type | Square Hole with 10-32 Cage Nu |
