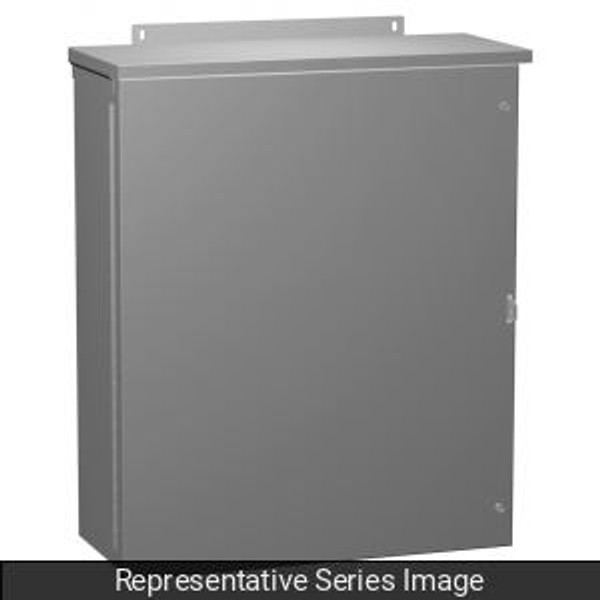

Application
Designed for use as a wiring/junction box. Provides protection against rain, sleet, snow and dripping water.
Standards
UL-50 Type 3R CSA Type 3R Complies with NEMA Type 3R IEC 60529, IP24
Construction
Formed and spot welded from 16 or 14 gauge galvanized steel. Drip shield top and seam-free sides, front and back. Stainless steel continuous hinge. Cover fastened with captive plated screws. Padlocking hasp. Collar studs provided for mounting optional panels. External mounting feet. Oil resistant gaskets are permanently secured.
Finish
Enclosure and cover are finished inside and out in ANSI 61 gray powder coating.
Specifications
