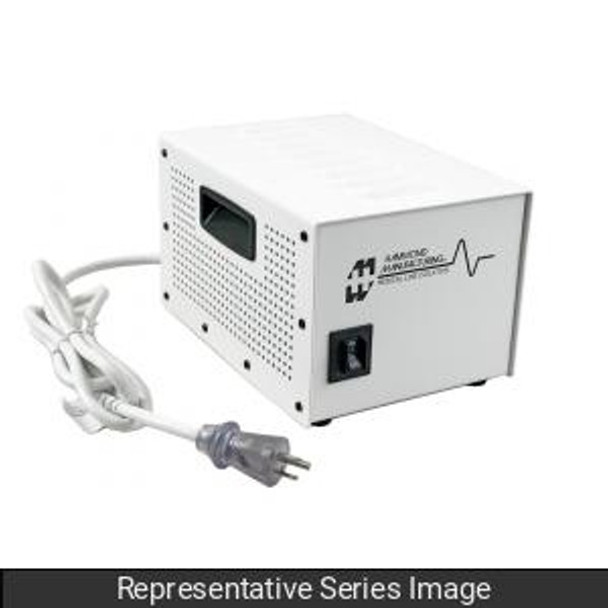

Description
Features:
- Intended for non-patient connected indoor applications where protection of sensitive electronics is required:
- High end audio / studio use
- Medical electronics
- High end test equipment / laboratory
- cULus Listed to UL 60601-1 (1st Edition) and CAN/CSA-C22.2 No. 601.1-M90 (R2005).
- Each unit provides complete line isolation and noise filtering plus utilizes a Faraday shield to reduce leakage currents below UL60601-1 requirements (under 100 microamps).
- Reduced noise coupling due to floating AC output.
- Not intended to be used to supply power to life support appliances.
- 3 different VA Capacities available - - 500VA, 1000VA, and 1800VA. All rated 50/60Hz.
- 4 different electrical configurations;
- 120V-120V straight isolation ("178" series)
- 240V-240V straight isolation ("240" series)
- 240V-120V step down isolation ("289" series)
- 120V-240V step up isolation ("298" series)
- Vented 14 gauge steel housing with white powder paint
- Hospital Grade 3-wire grounded Input Plug (see chart).
- 2 or 3 Duplex Hospital Grade Output Receptacles (see chart).
- On-Off Switch / Circuit Breaker combo protected, and built in automatic Thermal Cut Out for added protection.
Specifications
| Power Rating (VA) | 500 |
|---|---|
| Input Voltage (AC) | 120 VAC |
| Input Current (Amps) | 4.33 A |
| Output Voltage (VAC) | 240 VAC |
| Output Current (Amps) | 2.08 A |
| Leakage Current | < 100 uA |
| Full Load Efficiency | 93% (min) |
| Input Plug NEMA Type | 5-15P |
| Cord Style / Length | 14/3 SJTW/ 6ft. |
| Output Receptacle | Duplex 6-15R |
| Number of Duplex Receptacles | 2; |
| Drawing Sheet | Download Drawing Sheet |
