In Stock
Hammond Manufacturing

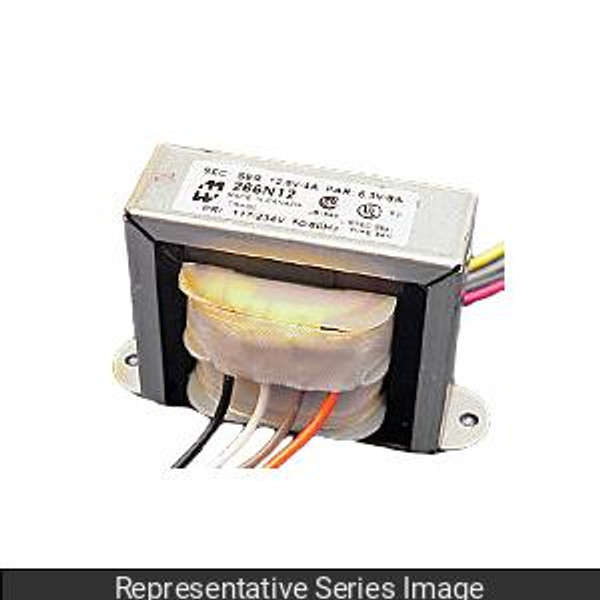

Hammond Manufacturing 266L20 Power transformer, chassis mount, 40VA, 20V @ 2A or 10V @ 4A, 266 Series

No reviews yet Write a Review
$57.81
SKU:
266L20
UPC:
623980809298
Availability:
Lead time - Stock items ship 1-2 Days
Minimum Purchase:
1 unit
Current Stock:
Product Series:
266 Series
UNSPSC:
39121301
REACH Compliant:
Yes
RoHS Compliant:
Yes
$57.81

Frequently Bought Together:

Hammond Manufacturing 266L20 Power transformer, chassis mount, 40VA, 20V @ 2A or 10V @ 4A, 266 Series
Inc. Tax
Ex. Tax

Description

Features

  • Primary 117/234 VAC, 50/60 Hz.
  • All units have dual secondaries except 266LA25 (C.T. secondary only). If you only require a single primary & secondary check out our more economical 166 Series.
  • Secondaries can be used as; a center tapped secondary, parallel connected or used individually (except 266LA25).
  • Units are designed for use with all windings engaged.
  • Open style.
  • Minimum 6" long leads.
  • Dual bobbin design - no electrostatic shield required.
  • We use Class B insulation (130 degrees, C) for extra protection - UL listed as a Class A (105 degree, C) design
  • Hi-Pot test of 2,000V RMS.
  • UL listed (# E207860) Type 3AH
  • CSA certified (209651)

Specifications

Power Rating (VA)40
Secondary VAC RMS Series (C.T)20V @ 2A
Secondary VAC RMS Parallel10V @ 4A
Drawing SheetDownload Drawing Sheet
