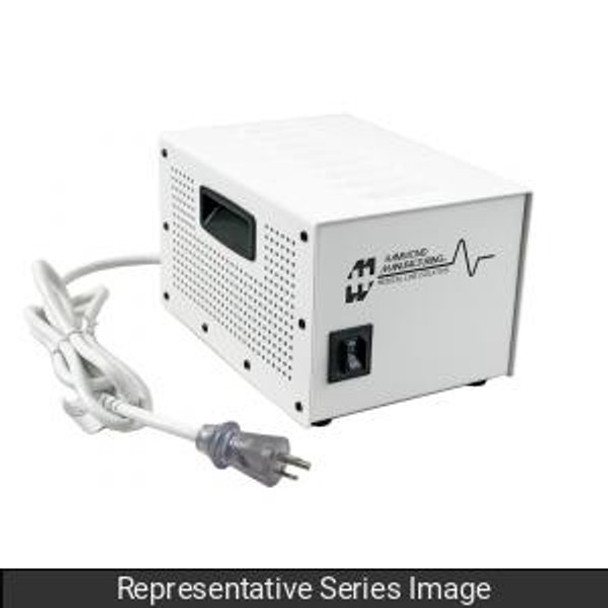

Hammond Manufacturing 240MG500 Isolation transfortmer, medical grade, 500VA, 240 VAC to 240 VAC, MG Series

Features:

• Intended for non-patient connected indoor applications where protection of sensitive electronics is required:
  • High end audio / studio use
  • Medical electronics
  • High end test equipment / laboratory
• cULus Listed to UL 60601-1 (1st Edition) and CAN/CSA-C22.2 No. 601.1-M90 (R2005).
• Each unit provides complete line isolation and noise filtering plus utilizes a Faraday shield to reduce leakage currents below UL60601-1 requirements (under 100 microamps).
• Reduced noise coupling due to floating AC output.
• Not intended to be used to supply power to life support appliances.

• 3 different VA Capacities available - -  500VA, 1000VA, and 1800VA.  All rated 50/60Hz.
• 4 different electrical configurations;
  • 120V-120V straight isolation ("178" series)
  • 240V-240V straight isolation ("240" series)
  • 240V-120V step down isolation ("289" series)
  • 120V-240V step up isolation ("298" series)

• Vented 14 gauge steel housing with white powder paint
• Hospital Grade 3-wire grounded Input Plug (see chart).
• 2 or 3 Duplex Hospital Grade Output Receptacles (see chart).
• On-Off Switch / Circuit Breaker combo protected, and built in automatic Thermal Cut Out for added protection.

Specifications
