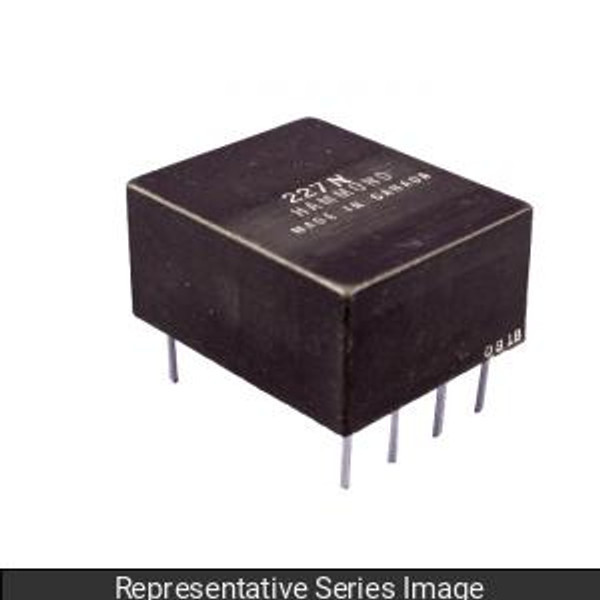

Description
Features
- Primary 115 VAC, 60 or 400Hz. models, 3 case sizes
- Epoxy cast to withstand shock and severe environments
- Two coil design provides balanced windings and low magnetic radiation - no electrostatic shield required.
- 228 series include four, 6-32 X .38 machine screw inserts for less strain on p.c. board connections.
Specifications
| Power Rating (VA) | 20 |
|---|---|
| Secondary (RMS) Series | 20V C.T. @ 1A |
| Secondary (RMS) Parallel | 10V @ 2A |
| Frequency (Hz) | 400 |
| Temp Rise (C) | 35 |
| % Regulation | 7.2 |
| Drawing Sheet | Download Drawing Sheet |
