Description
Features

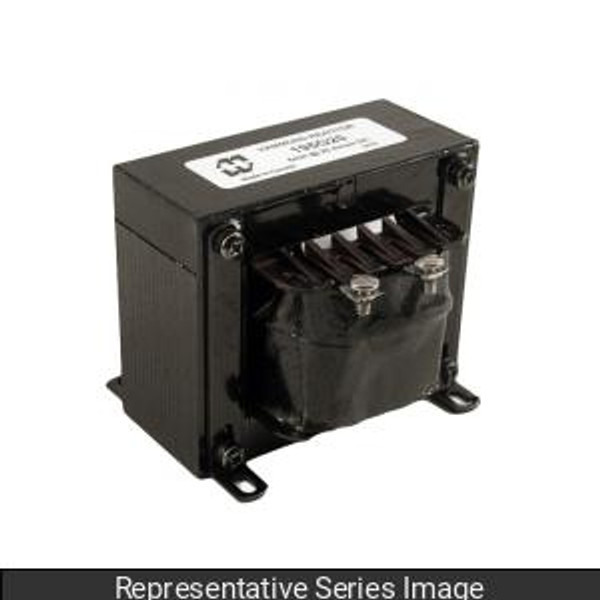

- Open core & coil, 4-slot bracket mounting chokes.
- Tolerance of 15% on both inductance & resistance.
- Inductances measured at rated D.C. current.
- The "195" series is single coil
- The "196" series is dual coil - allowing more versatility
- Recommended maximum operating voltage 600 VAC (winding to core).
- Hipot tested at 2,500 VAC
- Connections are made to a screw terminal or heavy copper tabs with holes
- Perfect for high current power supply filtering.
- For AC applications 60 Hz to 10,000 Hz try our 197 Series
Specifications
| Parallel Connected Inductance (mH) | 1.2 |
|---|---|
| Parallel Connected D.C. Current (A) | 24 |
| Series Connected Inductance (mH) | 4.8 |
| Series Connected D.C. Current (A) | 12 |
| Resistance (Each Winding) (Ohms) | 0.024 |
| Drawing Sheet | Download Drawing Sheet |
