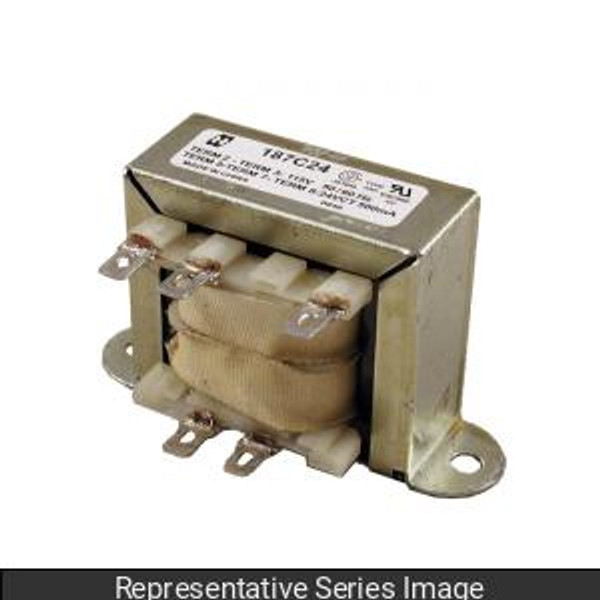

Description
Features
- Choice of two primaries: Single Primary 115VAC (187 series) or Dual Primary 115/230VAC (186 series).
- Either series operates on 50/60 Hz.
- Combination solder or quick connect terminals.
- Split bobbin construction eliminates the need for an electrostatic shield.
- Hi-pot tested to 2 KV RMS.
- Economical open style, channel frame - chassis mount design
- Insulation material - Class B or 130 C
- Lower temperature rise designed not to exceed Class A for longer life.
- UL listed (# E207860) Type 3AH
- CSA Certified
Specifications
| Power Rating (VA) | 30 |
|---|---|
| Primary Voltage | 115 VAC |
| Secondary (RMS) VAC | 24V C.T. |
| Secondary Current (Amps) | 1.25 |
| Drawing Sheet | Download Drawing Sheet |
