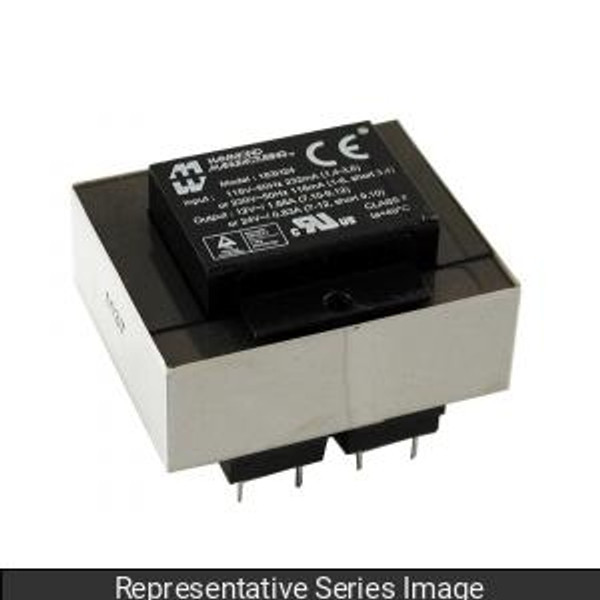

Hammond Manufacturing 183H10 Transformer, low voltage PCB mount, 115/230V, 20VA, 10V C.T. @ 2A, 183 Series

Features

• Universal operation - dual primary. 115 or 230 VAC, 50/60 Hz current.
• 14 output voltages to choose from (5 - 36 VAC R.M.S.)
• Six VA size models available from - 2.5 to 56VA.
• Low profile, split bobbin with top shroud design.
• Dual winding secondaries, non-concentrically wound. Can be wired in series, parallel or used separately.
• Low primary to secondary coupling - no electrostatic shield required.
• High insulation - Hipot of 4,000V RMS.
• Class F insulation - 155 degrees C.
• Two hole mounting on 2.5, 5, 10 and 20VA sizes, four hole mounting on 30 and 56VA size (mounting screws not provided).
• P.C. board mount with industry standard pin spacing.
• Listings: cURus, CE and TUV.
