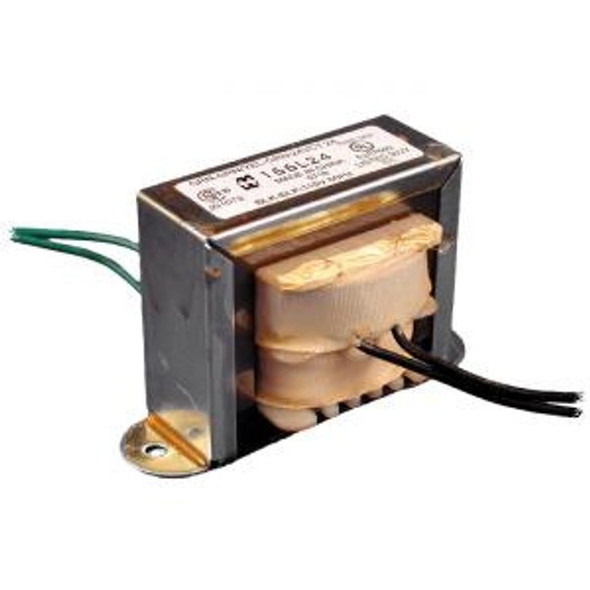

Hammond Manufacturing 166J12B Power transformer, low voltage, 117V 50/60 Hz., 12.6VA, 12.6 C.T., 1A

Features

• Economical single primary 115 VAC, 60 Hz. (or 117 50/60 Hz. see table) - (If you require 117/234 or 50/60 Hz. operation or dual secondaries check out our versatile 266 Series.
• Most secondaries are center tapped (C.T.), VAC (RMS) - see table for details.
• Open style, channel bracket, two hole chassis mount.
• Minimum 6" long leads.
• Dual bobbin design - no electrostatic shield required.
• We use Class B insulation (130 degrees, C) for extra protection - UL listed as a Class A (105 degree, C) design
• Hi-Pot test of 2,000V RMS.
• UL listed.
• CSA certified.
