Description
Features
- Designed for push-pull tube output circuits.
- A perfect match to our 300P potted power transformers.

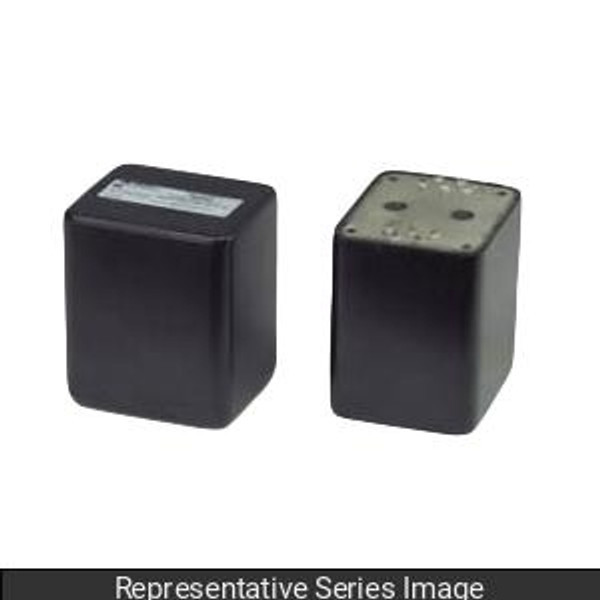

- Enclosed in a drawn steel case, the transformer is completely potted in epoxy.
- Frequency response 30 Hz. to 30 Khz. at full rated power (+/- 1 db max. ref. 1 Khz) minimum.
- Lead connection is via 10 bottom mounted lugs.
- All units include 40% screen taps for Ultra-Linear operation (if desired).
- Finished in a black powder paint (to match our 300P series power transformers).
- Typical applications - Push-Pull: triode, Ultra-Linear pentode, pentode and tetrode connected audio output.
Specifications
| Audio Watts | 50 |
|---|---|
| Primary Impedance (Ohms) | 3400 ct |
| Max. D.C. Per Side | 318 ma. |
| Secondary Impedance (Ohms) | 4-8-16 |
| Drawing Sheet | Download Drawing Sheet |
