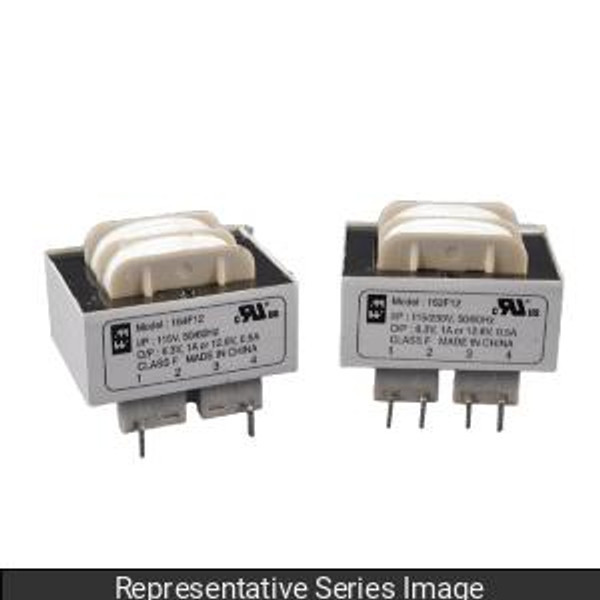

Hammond Manufacturing 164G12 Transformer, low voltage PCB mount, low profile, 115V, 12VA, 12.6V C.T. @ 1.0A

No reviews yet Write a Review
$13.03
SKU:
164G12
UPC:
623980260112
Availability:
Lead time - Stock items ship 1-2 Days
Minimum Purchase:
1 unit
Current Stock:
Product Series:
162-164 Series
UNSPSC:
39121301
REACH Compliant:
Yes
RoHS Compliant:
Yes
$13.03

Frequently Bought Together:

Hammond Manufacturing 164G12 Transformer, low voltage PCB mount, low profile, 115V, 12VA, 12.6V C.T. @ 1.0A
Inc. Tax
Ex. Tax

Description

Features

  • 20 output voltages to choose from (5 - 120VAC R.M.S.)
  • Six VA size models available from - 1.1 to 36VA
  • Both series operate on 50/60 Hz current
  • Low profile, split bobbin design.
  • Dual winding secondaries, non-concentrically wound
  • Units are designed so that all windings must be used
  • Low primary to secondary coupling - no electrostatic shield required.
  • Choice of economical single primary 115V (164 series) or universal dual primary 115/230V (162 series) - either model 50/60 Hz operation.
  • High insulation - Hipot of 2,500V RMS.
  • Class B insulation - 130 degrees C.
  • No mounting hardware required on 1.1 and 2.4 VA sizes, two hole mounting on 6, 12 and 20VA sizes, four hole mounting on 36VA size (mounting screws not provided). P.C. board mount with industry standard pin spacing.
  • c UL us recognized

Specifications

Power Rating (VA)12
Secondary (RMS) Series12.6V C.T. @ 1.0A
Secondary (RMS) Parallel6.3V @ 2.0A
