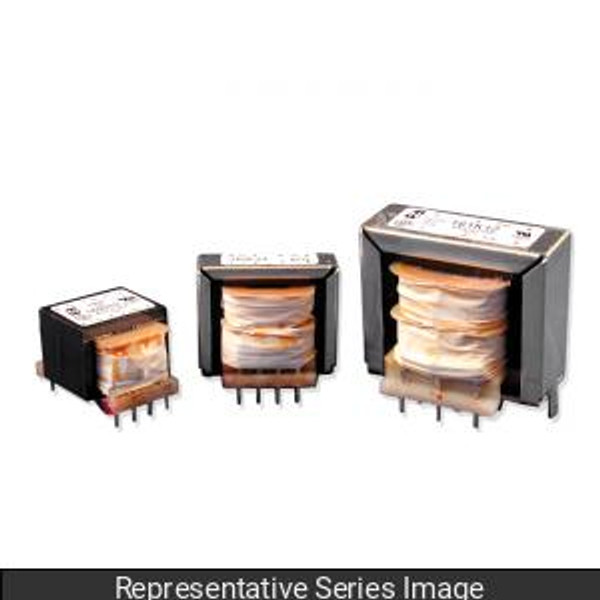

Hammond Manufacturing 161H56 Transformer, low voltage PCB mount, 115V primary, 24VA, 56V C.T. @ 420ma sec

Features

• 20 output voltages to choose from (5 - 120VAC R.M.S.)
• Six VA size models available from - .5 to 24 VA
• Vertical mount, split bobbin design.
• 1.2, 4.4, 10, 24 VA models are non-concentric wound.
• 0.5 and 1 VA are both concentric wound.
• Low primary to secondary coupling - no electrostatic shield required.
• Choice of economical single primary 115V - 60 Hz only (161 series) or the universal dual primary 115/230V - 50/60 Hz (160 series).
• High insulation - Hipot of 2,000V RMS.
• Class B insulation - 130 degrees C.
• CSA certified (File # LR3902) and UL recognized (File #E207860).

Specifications
