Description
Features:

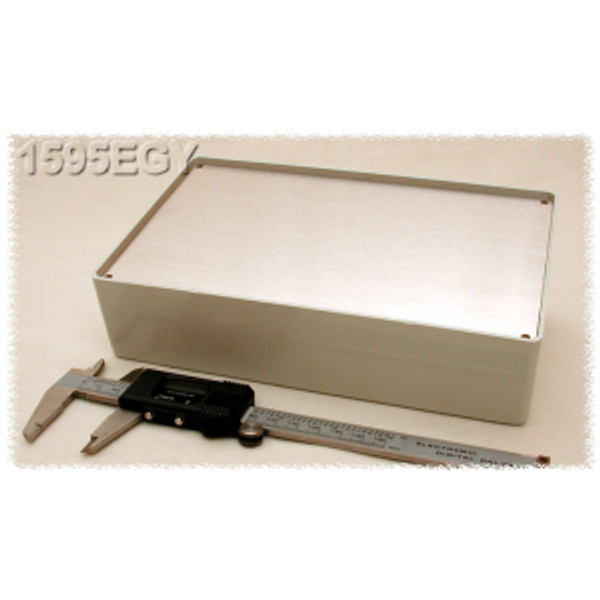

- Desk top electronic instrument enclosure, ideally suited for mounting printed circuit boards.
- Molded from flame retardant ABS plastic (material carries a UL flammability rating of 94V-0).
- Two piece construction. Integral card guides accept 1.5 mm (0.062") P.C. cards. 0.20" diameter stand off bosses in the base for supporting various subassemblies.
- Integral brass bushings with four M3 x 0.5" x 8 mm (0.31") Phillips pan head screws hold recessed panel into sloping front of case.
- 1.01 mm (0.04") aluminum panel with paper on one side.
- Four self-adhesive feet included.
- Stocked in black and grey.
Specifications
| Packaging Type | shrink wrap |
|---|---|
| Material | ABS Plastic |
| Color | Light Gray |
| Flame Rating | UL94 V-0 |
| IP Rating | IP54 |
| Product Category | Enclosures |
| Type | Sloped Console |
| Max. P.C. Board Length (mm) | 112.53 |
| Max. P.C. Board Width (mm) | 206.48 |
| Drawing Sheet | Download Drawing Sheet |
