Description
Key Features:
- Molded from a grey, glass reinforced polyester. Smooth finish.
- Includes gasketed lid with two piece "tongue & groove" construction.
- Heavy duty, thick wall design.
- North American Mark of Safety - C UL & UL listed. Industrial Control Panel Enclosure Certified to NEMA 4, 4X standards (UL 508A) - File #E65324 and IP66 Rated
- Impact rating of IK08 per IEC62262
- Lid contains self captivated stainless steel screws.
- Gasket material is Mohogumi rubber (EDPM). Heat resistance 100-120 degree C, cold -40 degree C.
- Easy wall mounting via "through box - blind hole" construction, outside of the gasket protection (see photos below).
- Internal mounting shelf & bonding / mounting nuts molded in (see "open" photos or drawings for more details).

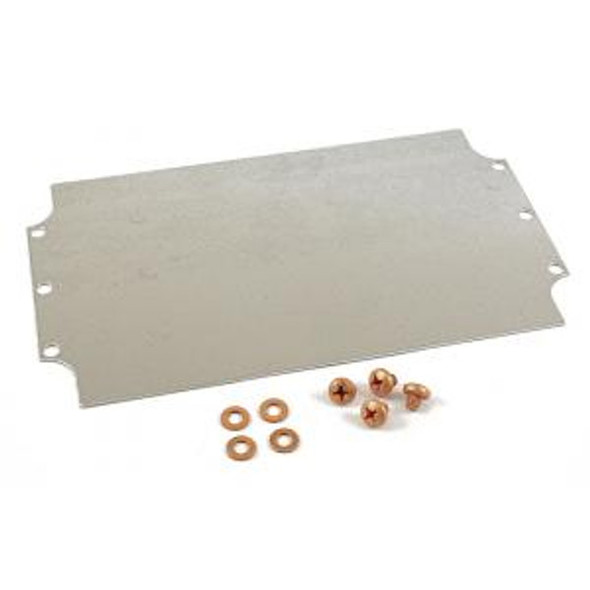

- Optional 16 gauge, galvanized steel inner panels available (see drawings for details and part number listing below).
Specifications
| Packaging Type | shrink wrap |
|---|---|
| Material | Fiberglass Polyester |
| Color | Gray |
| Flame Rating | UL94 V-0 |
| IP Rating | IP66 |
| Product Category | Enclosures |
| Type | Thick wall, water-tight |
| NEMA Rating | 1, 4, 4X, 12 & 13 |
| Max. P.C. Board Length (mm) | 243 |
| Max. P.C. Board Width (mm) | 143; |
| Drawing Sheet | Download Drawing Sheet |
