Description
Features

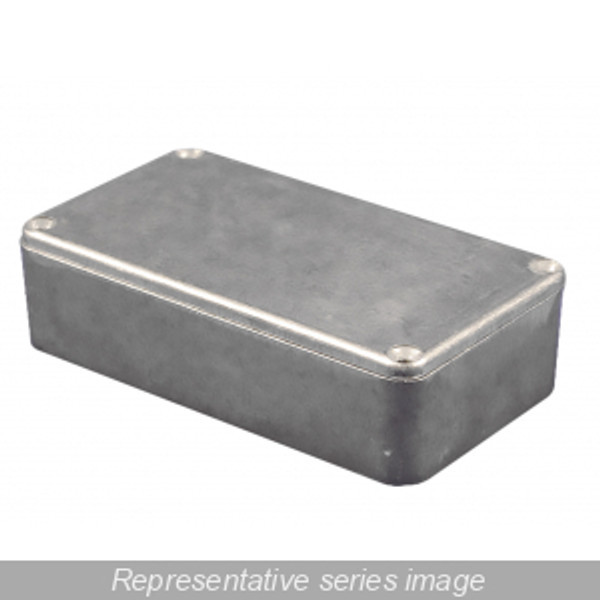

- Rugged, diecast aluminum alloy (tough - yet easy to machine), electronic instrument enclosure.
- Lap joint construction provides protection against access of dust and splashing water. Also provides for improved EMI/RFI shielding.
- Unpainted version is vibra finished for a smooth surface with no sharp edges.
- Textured black version is coated with tough polyester powder paint for a lasting finish, even after machining. Black screws are included to enhance appearance.
- Includes screws threaded into factory-tapped holes. Screw type and quantity vary. See details below or in drawings.
- Standard versions are designed to meet IP54.
- Water-tight versions are designed to meet IP65 and include a gasket. Gasket is supplied loose inside the enclosure (not pre-installed).
- Low side wall draft angle (2 degrees or less) for easy P.C. board mounting.
Specifications
| Packaging Type | shrink wrap |
|---|---|
| Material | Aluminum (Die-Cast Alloy) |
| Color | Black |
| IP Rating | IP54 |
| Product Category | Enclosures |
| Type | Die-cast box, flanged |
| Max. P.C. Board Length (mm) | 61.68 |
| Max. P.C. Board Width (mm) | 245.68 |
| Drawing Sheet | Download Drawing Sheet |
