Description
Features
- Designed for power distribution from front or rear of the unit.

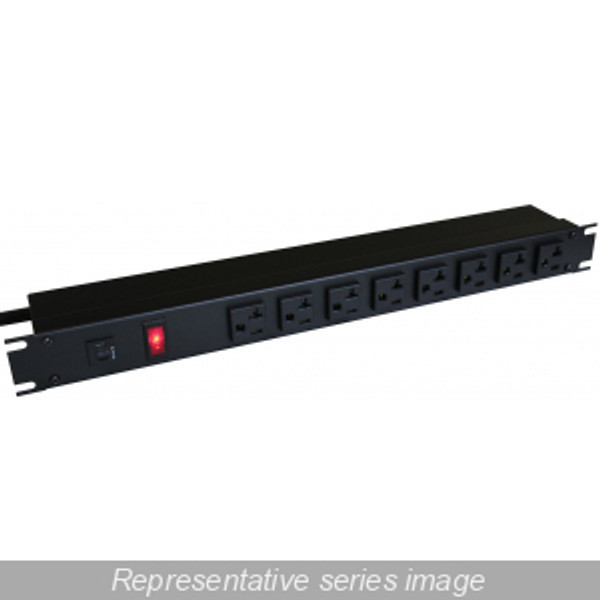

- 1U horizontal 19" rackmount installation.
- Available with on/off switch or red pilot light to indicate power on.
Specifications
- Heavy duty 12 gauge wire cord - 12/3 SJT type for extreme temperature ranges and integral molded plug.
- Heavy-duty black receptacles rated for 20A, 125VAC service (NEMA 5-20R, Single T-Slot).
- Plug types available are NEMA 5-20P straight blade or NEMA L5-20P locking type.
- Includes 20 Amp, 125 VAC circuit breaker to prevent accidental overload.
- Operating temperature is from -20 degrees C to +60 degrees C
- CSA certified, Standards C22.2 (No. 21-95 and No. 42-99)
- UL/cUL recognized Standard UL1363 file No. E166039 & CSA C22.2 No. 308-14
- Finished in textured RAL9005 black powder paint finish.
- TAA-compliant for GSA Schedule purchases.
- RoHS and REACH compliant.
- Manufactured in North America.
Specifications
| Outlet Strip Type | 1U 19in Rack Mount |
|---|---|
| Rated Voltage | 120VAC |
| Rated Current (Amps) | 20 |
| Switch Type | No Switch. Power Indicator Light |
| Total Outlets | 6 |
| Outlet Type | 5-20R |
| Plug Type | 5-20P |
| Cord Included | Yes |
| Cord Length (feet) | 15 |
| Shielded Cord | No |
| Surge Protection | No |
| Color | Black; |
| Drawing Sheet | Download Drawing Sheet |
