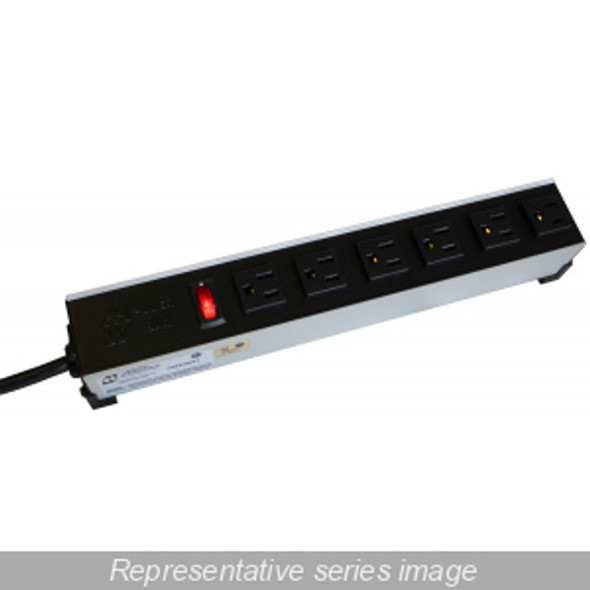

Description
Features
- Built to meet the rugged requirements of commercial and industrial use.
- All metal housing - tough extruded aluminum case with a black powder paint coated steel cover.
- Heavy duty NEMA 5-15R receptacles.
- Mounting feet (with keyhole slots) allow temporary work station mounting if desired.
- On-Off switch is rocker type with pilot light (on units with on-off switch - listed below). A red pilot light is used to indicate power on (on units with no switch).
- Click here for our surge protected version.
Specifications
- Heavy duty 14 gauge wire cord - 14/3 SJT type for extreme temperature ranges and integral molded plug.
- Plug types available are NEMA 5-15P straight blade or NEMA L5-15P locking type (see table below).
- Includes 15 amp, 125 volt resettable circuit breaker to prevent accidental line overload.
- UL/cUL Listed Standard UL1363 file No. E166039 & CSA C22.2 No. 308-14 & CSA C22.2 No. 0.4-04
- TAA compliant for GSA Schedule purchases.
- RoHS Compliant.
- Manufactured in North America.
Specifications
| Outlet Strip Type | Heavy Duty |
|---|---|
| Rated Voltage | 120 VAC |
| Rated Current (Amps) | 15 |
| Switch Type | No Switch. Power Indicator Light |
| Total Outlets | 5 |
| Outlet Type | 5-15R |
| Plug Type | 5-15P |
| Cord Included | Yes |
| Cord Length (feet) | 15 |
| Shielded Cord | No |
| Surge Protection | No |
| Color | Anodized / Black; |
| Drawing Sheet | Download Drawing Sheet |
