Description
Key Features:

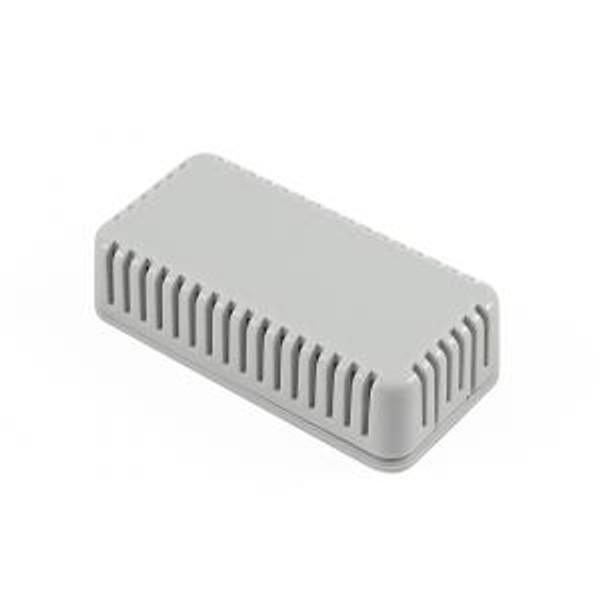

- Simple snap-fit assembly and wall-mounting features designed for IoT or general purpose applications.
- Choice of vented or unvented.
- Vented versions protect electronics from harmful contact with hands or tools, but allows entry of air and moisture for applications which require environmental exposure (e.g. sensors).
- Ideally suited for mounting of printed circuit boards.
- Slots on the base of the enclosure allow for easy wall-mounting.
- Knockout on the base can be removed with a screwdriver and used for wire entry.
- Molded in ABS plastic (material has a UL94-HB rating).
- Choice of (4) square/ rectangle sizes and (3) circle sizes. Stocked in black, grey, and white.
- Satin texture finish.
- Enclosure features a snap-fit assembly and can be reopened repeatedly as needed. No hardware required.
- (4) P.C. board standoffs molded into interior (see drawings for details).
- Designed to meet IP30.
Specifications
| Packaging Type | shrink wrap |
|---|---|
| Material | ABS Plastic |
| Color | Gray |
| Flame Rating | UL94 HB |
| IP Rating | IP30 |
| Product Category | Enclosures |
| Type | Miniature, Sensor |
| Max. P.C. Board Length (mm) | 74 |
| Max. P.C. Board Width (mm) | 34 |
| Drawing Sheet | Download Drawing Sheet |
