Description
Features

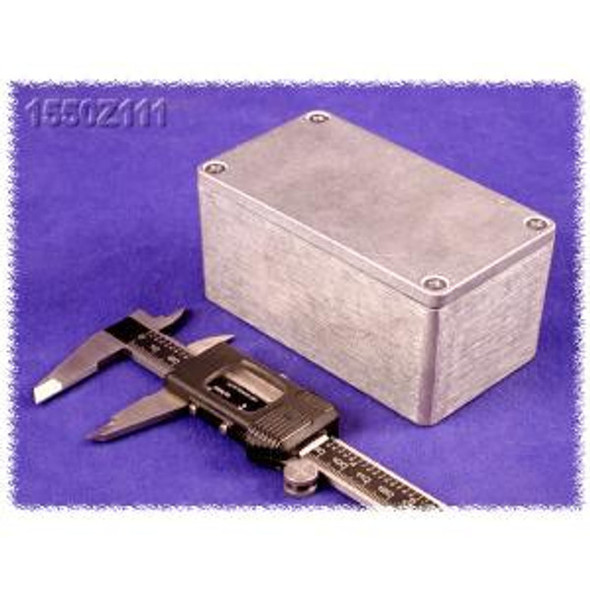

- Rugged, diecast aluminum alloy (tough yet easy to machine), electronic instrument enclosure.
- Available in natural vibra finish OR in light textured, black powder paint.
- Unpainted version is vibra finished for a smooth surface with no sharp edges.
- Painted version is painted with tough satin black polyester powder paint for a lasting finish, even after machining. Black screws are included to enhance the assembled appearance.
- Lap joint construction protection against access of dust and splashing water. Also provides for improved EMI/RFI shielding. The enclosure does not provide shielding when water-tight gaskets are installed.
- M3.5 x 0.6 x 12 mm long stainless steel, Philips head, machine screws secure lid into factory tapped holes.
- Designed to meet IP 54 without a gasket or IP66 with a gasket. IP67 upgraded gaskets are available.
- All sizes except 1550Z101** carry an impact rating of IK08 per IEC62262
- No internal ribs for easy installation of connectors without interference or additional milling.
- Low side wall draft angle (2 degrees or less) for easy P.C. board mounting.
- Add 0.16" (4 mm) to enclosure depth for lid
Replacement Hardware
- Replacement screws for the unpainted series - 1550MS100 - Package of 100
- Replacement screws for the black series - 1550MS100BK - Package of 100
Upgrade To Tamper-Resistant (Torx With Pin) Hardware
- Tamper-resistant screws for the unpainted series - 1550MS50T- Package of 50
- Tamper-resistant screws for the black series -1550MS50TBK - Package of 50
- Driver bit for tamper-proof screws - SCDRIVET15-2
Accessory Gasket Kits
- IP66
- Each kit includes two pre-formed economical EVA foam gaskets.
- Gaskets include adhesive backing for easy installation.
- Allows enclosure to be machined and/or painted first and gasketed later
- Gasket is applied to the lid (see photo example below).
- Designed to meet IP 66 (with properly installed gasket and lid screws torqued at 55 cN.m).
- EVA Foam gasket rated up to 65 degrees C.
- IP67 Upgrade
- Each kit includes two pre-formed silicone gaskets.
- Gaskets include adhesive backing for easy installation.
- Allows enclosure to be machined and/or painted first and gasketed later.
- Gasket is applied to the lid (see photo example below).
- Tested to meet IP 67 (with properly installed gasket and lid screws torqued at 55 cN.m).
- Silicone gasket has a temperature rating of -40C to +150C
Specifications
| Packaging Type | shrink wrap |
|---|---|
| Material | Aluminum (Die-Cast Alloy) |
| Color | Black |
| IP Rating | IP54 |
| Product Category | Enclosures |
| Type | Die-cast box |
| Drawing Sheet | Download Drawing Sheet |
