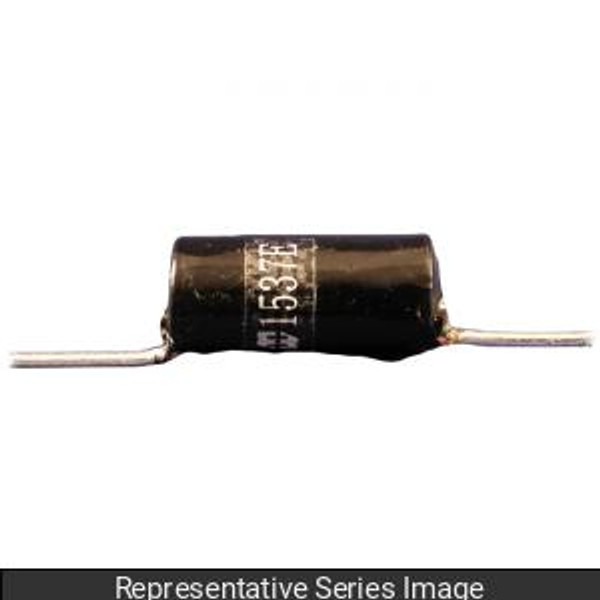

Description
Features
- Large ferrite core for extended saturation point, optimum frequency range .01-2 Mhz.
- 1.5" long leads (+/- 0.1")
- Test frequency 1 Khz.
- Core length 1.25"
- Coil is covered with vinyl insulation shrink sleeve.
- Operating Temperature -55 degrees C to + 135 degrees C
Specifications
| Inductance +/- 5% (uH) | 1000 |
|---|---|
| Minimum Q | 7.4 |
| D.C. Resistance (Ohms) | 0.83 |
| Max D.C. Current (Amps) | 1.25 |
| Coil Diameter | 0.59 |
| Lead Diameter Gauge | 20 |
| Drawing Sheet | Download Drawing Sheet |
