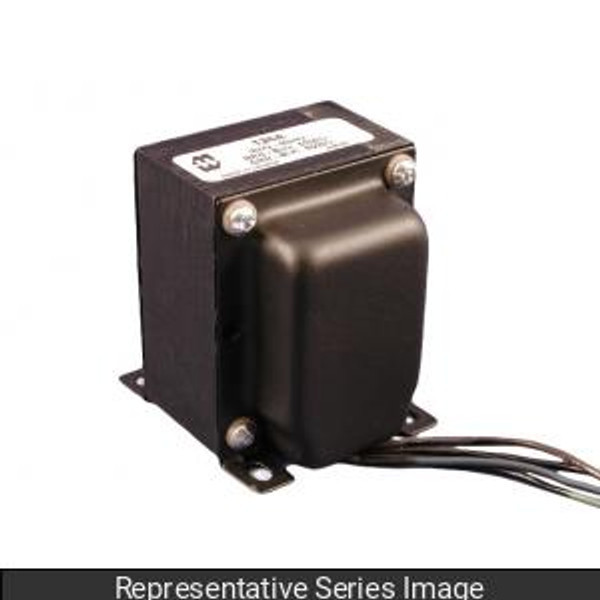

Hammond Manufacturing 126A Tube Driver - Interstag Audio Transformer

Features

• Designed for driver use ONLY in single ended tube output amplifiers. These units replace coupling capacitor circuits for improved sound.
• Closed style with minimum 8" long leads.
• All models use bifilar wound windings for exceptional coupling and bandwidth.
• Minimum frequency response 20 Hz. - 20 Khz (+/- 1db max. ref. 1 Khz.).
• The core is gapped to support the specified D.C. bias current.
• Maximum working voltage - 400 VDC
• Units are Hi-Pot tested at 1,000 VDC
• Core uses Hi grade silicon laminations (29M6).
• Units weight - 3 lbs. 2 oz.
