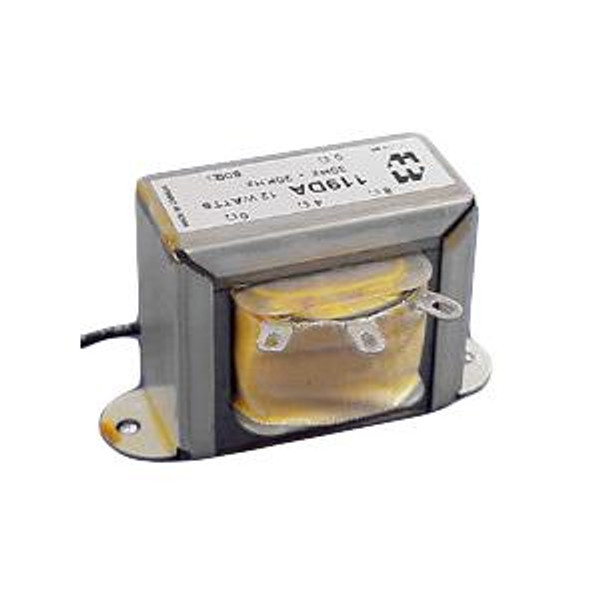

Description
Features
- Large core area for excellent low frequency response
- Manufactured with high quality 29M6 laminations (for low distortion)
- Concentric wound for excellent coupling
- Isolation type transformer (ie...separate primary and secondary)
- Primary: 600 Ohms (using 6" wire leads)
- Secondary: 8 Ohms with a 4 Ohm center tap (using solder lugs)
- Power: Rated at 12 watts
- Frequency response: 30 Hz. - 20 Khz. (+/- 1 db @ Full Power - 1 Khz. Reference)
- Weight: 1 pound, 4 oz.
- Mounting: 2 hole bracket mount - on 2 & 13/16" mounting hole centers
Specifications
| Primary Impedance (ohms) | 600 |
|---|---|
| Secondary Impedance (ohms) | 8 CT |
| Power Rating (Watts) | 12 |
| Frequency Response | 30 Hz. - 20 kHz. |
| Drawing Sheet | Download Drawing Sheet |
