Description
Features
- Couple 3.2, 8 or 16 ohm speakers to 25 or 70 volt line outputs of amplifiers.

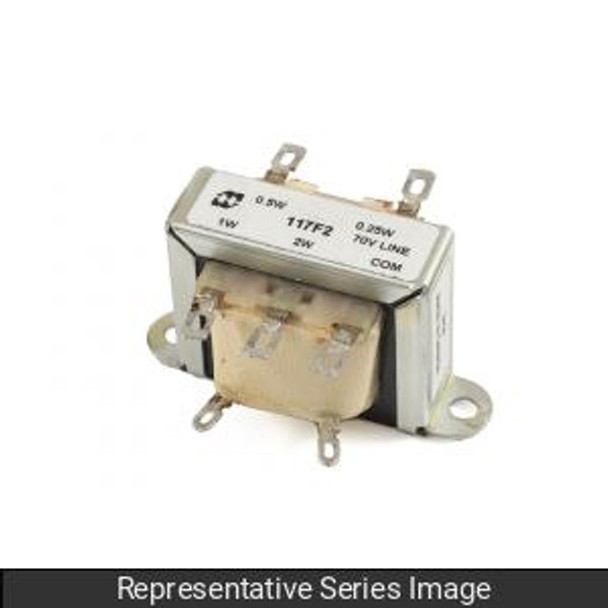

- Up to 5 power tap levels available (except 117F2 which has 4).
- Primary taps marked in watts (no calculation necessary), to match speaker power.
- For speaker matching from older "Classic" 600 Ohm equipment - check out our 119DA matching transformer.
- Frequency response 100 Hz. to 9 Khz. (1 db. reference @1 Khz.)
- Insertion loss less than 2 db.
- Distortion is less than 1.25% @ 100 Hz. at maximum power.
- Horizontal, channel bracket, 2-hole (.187" dia.) mounting.
- All models have solder lugs, also suitable for slip on jumper connections.
- Total power requirements of speakers should not exceed the rated power of each transformer or rated power of the amplifier.
Specifications
| System Volts | 70 |
|---|---|
| Power Rating (Watts) | 32 |
| Audio Power Taps | 32, 16, 8, 4, 2 |
| Voice Coil Impedance | 8 |
| Drawing Sheet | Download Drawing Sheet |
