Description
Features
- Perfect for audio input, line matching, isolation or output transformer applications.
- 2 watt (+/- 1.5 db, 300Hz. - 50 KHz.).

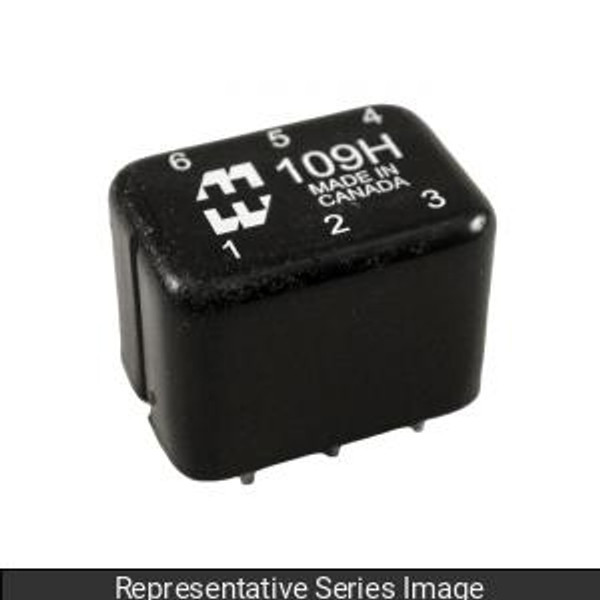

- Epoxy potted in an attractive black molded case, Pin type P.C. board mount (min. 0.187" length).
- In some models where no center tap is required (on secondary), pin No. 5 is omitted.
- Power level ratings are maximum at lowest frequency rating (see charts & PDF spec. sheets below)
- Power can be increased slightly at higher frequencies. See individual PDF specs. for specifics.
- Will withstand soldering for 10 sec. @ 260 degrees C, ambient temp. 85 degrees C max.
Specifications
| Primary Nominal Impedance (Ohms) Pins 1-3 | 600 ct |
|---|---|
| Secondary Nominal Impedance (ohms) Pins 4-6 | 3.2 |
| Primary DCR (Ohms) +/- 20% | 43 |
| Secondary DCR (Ohms) +/- 20% | 0.37 |
| Max. D.C. Unbalance (ma.) | 6 |
| Drawing Sheet | Download Drawing Sheet |
