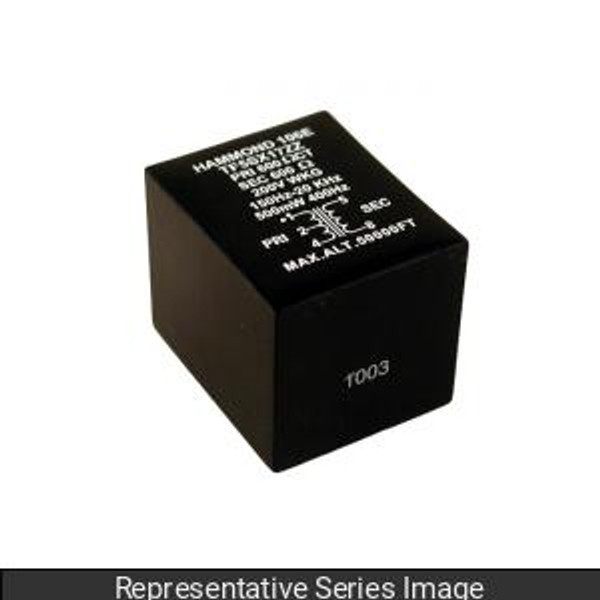

Description
Features
- Output power models from 5 to 1,500 milliwatt level available.
- P.C. board mount - square pin type (0.025" square typical) - see mechanical information below for lengths.
- Bifilar winding technique used on center tapped units for balanced resistive and capacitive characteristics.
- Rugged black epoxy potted construction produces a completely sealed unit withstanding severe environmental conditions including those of MIL-T-27 (Grade 5, Class S).
- For the more economical open type P.C. mount types please refer to the 148 and 149 series.
- Peak working voltage rating of: 200V
- Referring to figures 1-9, if connection is not used - no pin will exist.
Specifications
| Primary Nominal Impedance (Ohms) | 50000 |
|---|---|
| Secondary Nominal Impedance (ohms) | 1500 CT |
| Max Primary D.C. ma. | 0 |
| Primary DCR (Ohms) +/- 15% | 2400 |
| Secondary DCR (Ohms) +/- 15% | 52 |
| Output Milliwatts | 10 |
| Insertion Loss (dB) | 1 |
| Low Frequency Roll Off -1dB (Hz) | 60 |
| Drawing Sheet | Download Drawing Sheet |
