Description
Features

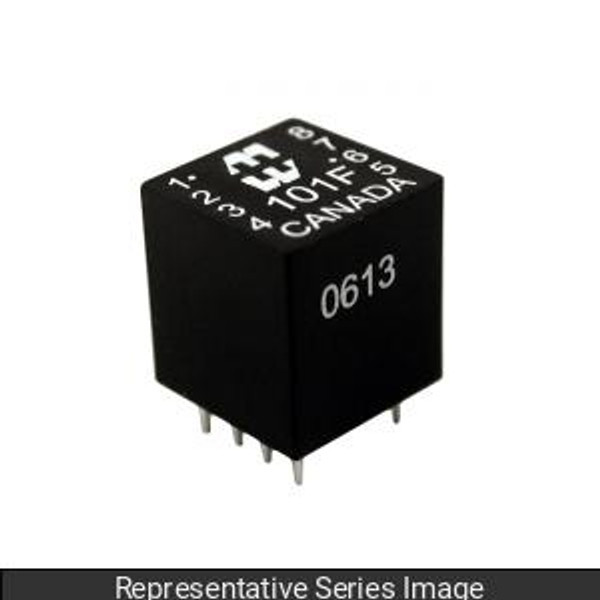

- Pin type, miniature size, P.C. board mount, net weight of only 0.1 oz.
- Rugged potted construction produces a completely sealed unit withstanding severe environmental conditions.
- Secondary may be used as primary and primary as secondary.
- Power level: Minimum frequency range: 300 Hz. to 100 Khz. +/- 0.5 db @ 100 mw
- Frequency range @ +10 dbm is 200 Hz. to 100 Khz. +/- 0.5 db
- Frequency range @ +15 dbm is 200 Hz. to 100 Khz. +/- 0.5 db
- Frequency range @ +20 dbm is 300 Hz. to 100 Khz. +/- 0.5 db
- Frequency measurements with no D.C. current saturation.
Specifications
| Primary Nominal Impedance (ohms) | 1200 CT |
|---|---|
| Secondary Nominal Impedance (ohms) | 600 CT |
| Primary Nominal Resistance (ohms) | 80 |
| Primary Nominal Resistance (ohms) | 53 |
| Useful Impedance Range (ohms) Pri/Sec to Pri/Sec | 600/300 to 2400/120 |
| Drawing Sheet | Download Drawing Sheet |
