Description
CAT623AWG/4PAIRCMR 550MHz SHIELDED F/UTP
The 6SHDCMRRx shielded ftp Cat6 ethernet cable comes in a 1000' wood reel, providing plenty of cable for large scale networking applications. CMR-rated with 550MHz performance high speed data transfer.
DESCRIPTION
23 AWG 4 Pair F/UTP Category 6 cable tested to 550Mhz premium grade, high performance for top level network cabling for maximum headroom and bandwidth. Available inwood reel for easier installation.
FEATURES AND BENEFITS
- Cross web filler for enhanced performance
- Improved cable temperature rating (750CRiser) for greater protection against increased operating temperatures.
- Sequential footage markings
- Verified by third-party for guaranteedperformance
APPLICATIONS
- IEEE 802.3 1000Base-T, 100Base-Tx10Base-T, PoE+
- ANSI/TIA 854: 1000Base-TX
- CDDI, Token Ring, ATM
- Digital Video
- Broadband and Baseband Analog Video
STANDARD COMPLIANCES
- ANSI/TIA 568-C.2
- ANSI/TIA 862 (Building Automation)
- ISO/IEC 11801 Ed. 2.0 (Class EI)
- ICEA 8-102-700 (Category 6 or 5E)
- REACH Compliant
- CPR Compliant (Fully Complies to305/2011 & EN 50575:2014-09)
- RoHS Compliant Directive 2002/95/EG

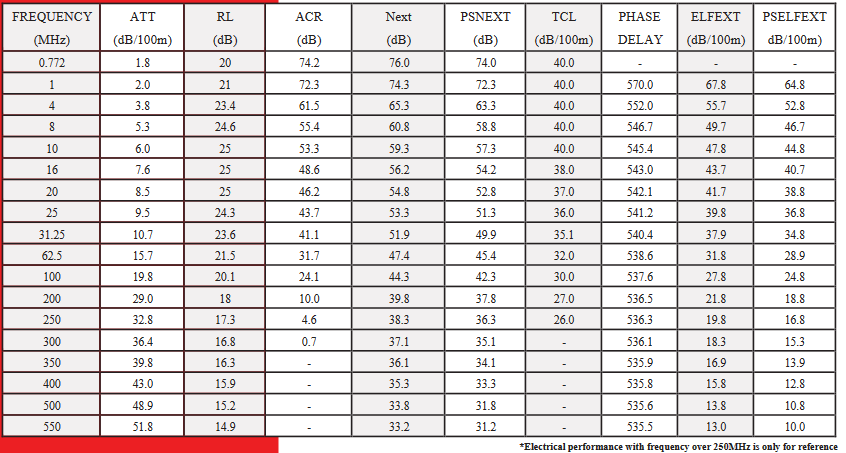

ELECTRICAL PERFORMANCE
ACRF-Attenuation to Crosstalk Ratio-FarEnd (dB/100m)
NEXT - Near End Crosstalk (dB/100m)
ACR - Attenuation to Crosstalk Ratio (dB/100m)
PSNEXT - Power Sum Near End Crosstalk (dB/100m)
ELFEXT - Equal Level Far End Crosstalk (dB/100m)
PSELFEXT - Power Sum Equal Leverl Far End Crosstalk (dB/100m)
RL - Return Loss (dB)
TCL - Transverse Conversion Loss (dB/100m)
ATT - Attenuation (dB/100m)
