Description
CAT6 23AWG/4PAIR 550MHz DIRECT BURIAL U/UTP
Cat 6, Direct Burial 23AWG 4PR UTP 550MHZ TIA/EIA-568-B.2 1,000 feet on Wooden Reel
DESCRIPTION
23 AWG 4 Pair U/UTP Category 6 cable tested to 550Mhz premium grade, high performance for top level network cabling for maximum headroom and bandwidth.Available inwood reel for easier installation.
FEATURES AND BENEFITS
- Cross web filler for enhanced performance
- Rugged jacket for outside plant applications
- UV resistant polyethylene jacket
- Sequential footage markings
- Verified by third-party for guaranteed performance
APPLICATIONS
- IEEE 802.3 1000Base-T, 100Base-Tx, 10Base-T, PoE+
- ANSI/TIA 854: 1000Base-TX
- CDDI, Token Ring, ATM
- Digital Video
- Broadband and Baseband Analog Video
STANDARD COMPLIANCES
- ANSI/TIA 568-C.2
- ANSI/TIA 862 (Building Automation)
- ISO/IEC 11801 Ed. 2.0 (Class EI)
- ICEA 8-102-700 (Category 6 or 5E)
- REACH Compliant
- CPR Compliant (Fully Comply to305/2011 & EN 50575:2014-09)
- RoHS Compliant Directive 2002/95/EG

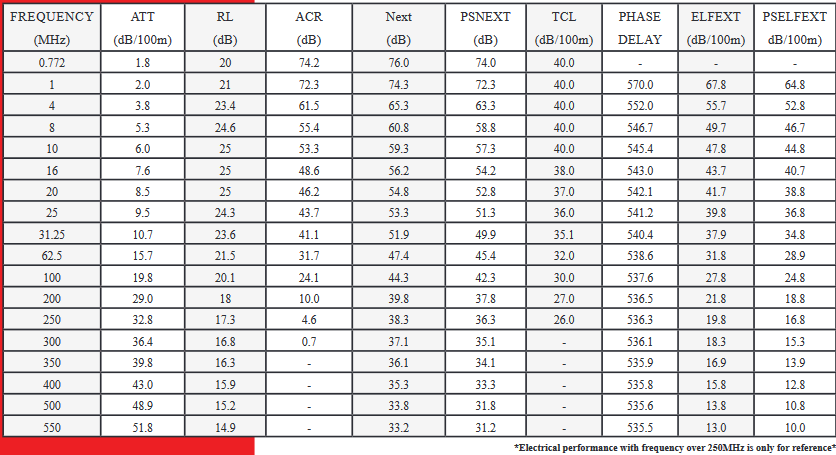

ELECTRICAL PERFORMANCE
ACRF - Attenuation to Crosstalk Ratio - Far End (dB/100m)
NEXT - Near End Crosstalk (dB/100m)
ACR - Attenuation to Crosstalk Ratio (dB/100m)
PSNEXT - Power Sum Near End Crosstalk (dB/100m)
ELFEXT - Equal Level Far End Crosstalk (dB/100m)
PSELFEXT - Power Sum Equal Leverl Far End Crosstalk (dB/100m
RL - Return Loss (dB)
TCL - Transverse Conversion Loss (dB/100m)
ATT - Attenuation (dB/100m)
