In Stock
Commodity Cables

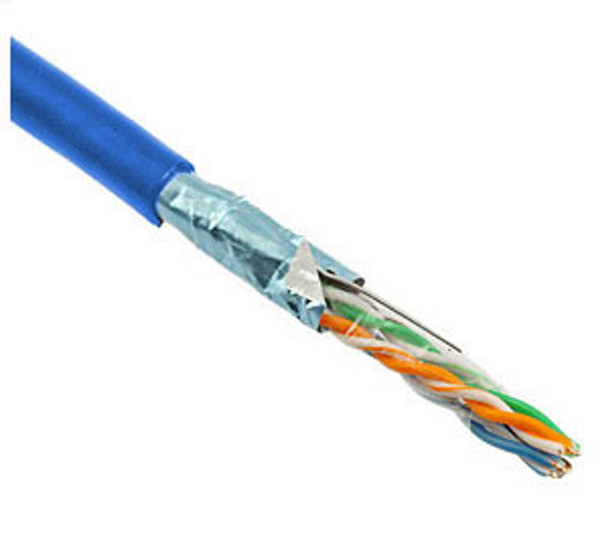

Commodity Cables 6ASHDCMPRx - Cat6A Shielded, F/UTP, Plenum, 10G, 23awg/4pr, 1000'

No reviews yet Write a Review
$711.00
SKU:
CC6ASHDCMPRx
Availability:
Lead time - Stock items ship 1-2 Days
Minimum Purchase:
1 unit
Current Stock:
Colors:
Blue, White
$711.00

Frequently Bought Together:

Commodity Cables 6ASHDCMPRx - Cat6A Shielded, F/UTP, Plenum, 10G, 23awg/4pr, 1000' | American Cable Assemblies
Inc. Tax
Ex. Tax

Description

CAT6A 23AWG/4PAIR 10GCMPSHIELDED F/UTP

23 AWG 4 Pair F/UTP 10G Category 6A cable tested to ANSI/TIA 568-C.2 for 10Gbps@500Mhz premium grade, high performancefor top level network cabling for maximumheadroom and bandwidth. Available in WoodReel for easier installation.

6ASHDCMPRx - Cat6A Shielded, F/UTP, Plenum, 10G, 23awg/4pr, 1000' - Image 26ASHDCMPRx - Cat6A Shielded, F/UTP, Plenum, 10G, 23awg/4pr, 1000' - Image 3

FEATURES AND BENEFITS

  • Category 6A performs at improved specifications, particularly in the area of alien crosstalk. Category 6A make use of their higherstandards by allowing full 10GBASE-T transmission speeds of up to 10Gbps, at 500MHzof signal bandwidth, over 100 meters (330 ft)
  • Improved cable temperature rating (900CPlenum) for greater protection againstincreased operating temperatures and forhigh-wattage applications
  • The internal separator optimizes each pairfor superior electrical perfomance and maintains flexibility. This unique spline stabilizeseach pair to create a smaller, round cableprofile

APPLICATIONS

  • IEEE 802.3 10G Base-T, 1000Base-T, 100Base-TX, 10Base-T, PoE, PoE+
  • ANSI/TIA 854: 1000Base-TX
  • CDDI, Token Ring, ATM
  • Digital Video
  • Broadband and Baseband Analog Video

STANDARD COMPLIANCES

  • ANSI/TIA 568-C.2
  • ANSI/TIA 862 (Building Automation)
  • ISO/IEC 11801 Ed. 2.0 (Class EI)
  • ICEA 8-102-700 (Category 6 or 5E)
  • REACH Compliant
  • CPR Compliant (Fully Comply to 305/201 1 & EN 50575:2014-09)
  • RoHS Compliant Directive 2002/95/EG

ELECTRICAL PERFORMANCE

ACRF - Attenuation to Crosstalk Ratio - Far End (dB/100m)
NEXT - Near End Crosstalk (dB/100m)
ACR - Attenuation to Crosstalk Ratio (dB/100m)
PSNEXT - Power Sum Near End Crosstalk (dB/100m)
ELFEXT - Equal Level Far End Crosstalk (dB/100m)
PSELFEXT - Power Sum Equal Leverl Far End Crosstalk (dB/100m)
RL - Return Loss (dB)
TCL - Transverse Conversion Loss (dB/100m)
ATT - Attenuation (dB/100m)

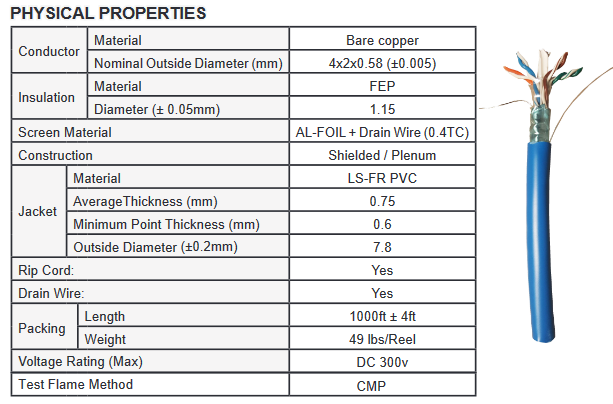

6ASHDCMPRx - Cat6A Shielded, F/UTP, Plenum, 10G, 23awg/4pr, 1000' - Image 4

6ASHDCMPRx - Cat6A Shielded, F/UTP, Plenum, 10G, 23awg/4pr, 1000' - Image 5

6ASHDCMPRx - Cat6A Shielded, F/UTP, Plenum, 10G, 23awg/4pr, 1000' - Image 6
