Commodity Cables 6ACMR234Rx - Cat6A, UTP, Non-Shielded, PVC, CMR, 10G, 23awg/4pr, 1000'

No reviews yet Write a Review
$321.00
SKU:
CC6ACMR234Rx
Availability:
Lead time - Stock items ship 1-2 Days
Minimum Purchase:
1 unit
Current Stock:
Colors:
Blue, White, Red, Green, Yellow
$321.00

Frequently Bought Together:

Commodity Cables 6ACMR234Rx - Cat6A, UTP, Non-Shielded, PVC, CMR, 10G, 23awg/4pr, 1000' | American Cable Assemblies
Inc. Tax
Ex. Tax

Description

CAT6A 23AWG/4PAIR 10G CMR U/UTP

6ACMR234Rx - Cat6A, UTP, Non-Shielded, PVC, CMR, 10G, 23awg/4pr, 1000' - Image 26ACMR234Rx - Cat6A, UTP, Non-Shielded, PVC, CMR, 10G, 23awg/4pr, 1000' - Image 3

DESCRIPTION
23 AWG 4 Pair U/UTP 10G Category 6A cable tested toANSI/TIA 568-C.2 for 10Gbps @500Mhz premium grade, high performanceor top level network cabling for maximumheadroom and bandwidth. Available in WoodReel for easier installation.
FEATURES AND BENEFITS

  • Category 6A performs at improved specifications, particularly in the area of alien cross-talk. Category 6A make use of their higherstandards by allowing full 10GBASE-T transmission speeds of up to 10Gbps, at 500MHzof signal bandwidth, over 100 meters (330 ft)
  • Improved cable temperature rating (750CRiser) for greater protection againstincreased operating temperatures and forhigh-wattage applications
  • The internal separator optimizes each pairfor superior electrical perfomance and maintains flexibility. This unique spline stabilizeseach pair to create a smaller, round cableprofile

APPLICATIONS

  • IEEE 802.3 10G Base-T, 1000Base-T,100Base-TX, 10Base-T, PoE, PoE+
  • ANSI/TIA 854: 1000Base-TX
  • CDDI, Token Ring, ATM
  • Digital Video
  • Broadband and Baseband Analog Video

STANDARD COMPLIANCES

  • ANSI/TIA 568-C.2
  • ANSI/TIA 862 (Building Automation)
  • ISO/IEC 11801 Ed. 2.0 (Class EI)
  • ICEA 8-102-700 (Category 6 or 5E)
  • REACH Compliant
  • CPR Compliant (Fully Comply to305/2011 & EN 50575:2014-09)
  • RoHS Compliant Directive 2002/95/EG

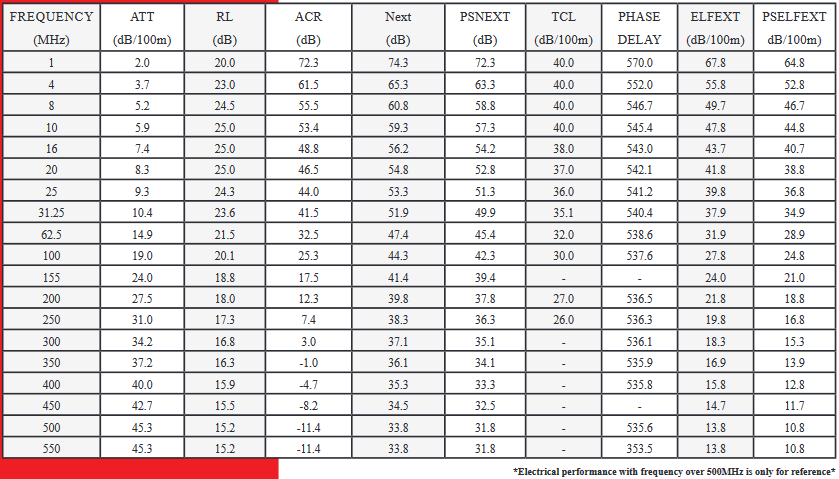

ELECTRICAL PERFORMANCE

  • ACRF - Attenuation to Crosstalk Ratio - Far End (dB/100m)
  • NEXT - Near End Crosstalk (dB/100m)
  • ACR - Attenuation to Crosstalk Ratio (dB/100m)
  • PSNEXT - Power Sum Near End Crosstalk (dB/100m)
  • ELFEXT - Equal Level Far End Crosstalk (dB/100m)
  • PSELFEXT - Power Sum Equal Leverl Far End Crosstalk (dB/100m)
  • RL - Return Loss (dB)
  • TCL - Transverse Conversion Loss (dB/100m)
  • ATT - Attenuation (dB/100m)

6ACMR234Rx - Cat6A, UTP, Non-Shielded, PVC, CMR, 10G, 23awg/4pr, 1000' - Image 4

6ACMR234Rx - Cat6A, UTP, Non-Shielded, PVC, CMR, 10G, 23awg/4pr, 1000' - Image 5

6ACMR234Rx - Cat6A, UTP, Non-Shielded, PVC, CMR, 10G, 23awg/4pr, 1000' - Image 6
