Commodity Cables 6ACMP234Rx - Cat6A, UTP, Non-Shielded, Plenum, 10G, 23awg/4pr, 1000'

No reviews yet Write a Review
$633.00
SKU:
CC6ACMP234Rx
Availability:
Lead time - Stock items ship 1-2 Days
Minimum Purchase:
1 unit
Current Stock:
Colors:
Blue, White
$633.00

Frequently Bought Together:

Commodity Cables 6ACMP234Rx - Cat6A, UTP, Non-Shielded, Plenum, 10G, 23awg/4pr, 1000' | American Cable Assemblies
Inc. Tax
Ex. Tax

Description

CAT6A 23AWG/4PAIR 10G CMPF/UTP

6ACMP234Rx - Cat6A, UTP, Non-Shielded, Plenum, 10G, 23awg/4pr, 1000' - Image 26ACMP234Rx - Cat6A, UTP, Non-Shielded, Plenum, 10G, 23awg/4pr, 1000' - Image 3

DESCRIPTION
23 AWG 4 PairF/UTP 10G Category6A cable tested to ANSI/TIA 568-C.2 for10Gbps @500Mhz premium grade, high performancefor top level network cabling for maximumheadroom and bandwidth.
Available in WoodReel for easier installation.

FEATURES AND BENEFITS

  • Category 6A performs at improvedspecifications, particularly in the area of alien cross-talk. Category 6A make use of their higher
    standards by allowing full 10GBASE-T transmission speeds of up to 10Gbps, at 500MHzof signal bandwidth, over 100 meters (330 ft)
  • Improved cable temperature rating (900C Plenum) for greater protection against increasedoperating temperatures and for high wattageapplications
  • The internal separator optimizes each pair forsuperior electrical perfomance and maintainsflexibility. This unique spline stabilizes eachpair to create a smaller, round cable profile

APPLICATIONS

  • IEEE 802.3 10G Base-T, 1000Base-T, 100Base-TX, 10Base-T, PoE, PoE+
  • ANSI/TIA 854: 1000Base-TX
  • CDDI, Token Ring, ATM
  • Digital Video
  • Broadband and Baseband Analog Video

STANDARD COMPLIANCES

  • ANSI/TIA 568-C.2
  • ANSI/TIA 862 (Building Automation)
  • ISO/IEC 11801 Ed. 2.0 (Class EI)
  • ICEA 8-102-700 (Category 6 or 5E)
  • REACH Compliant
  • CPR Compliant (Fully Comply to
  • 305/2011 & EN 50575:2014-09)
  • RoHS Compliant Directive 2002/95/EG

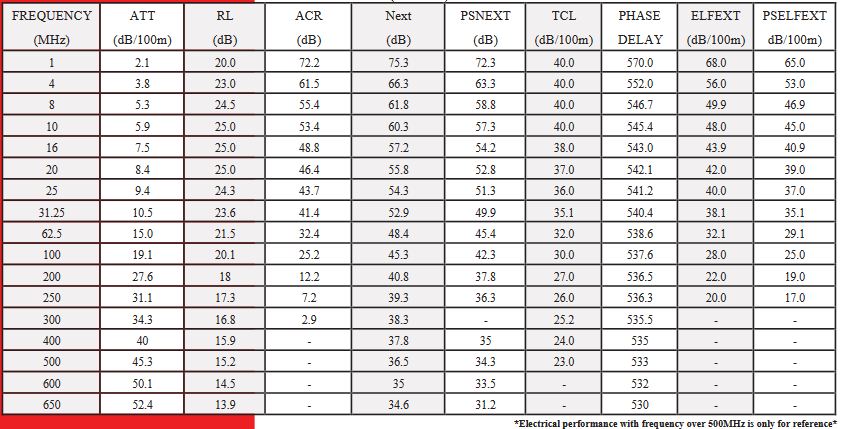

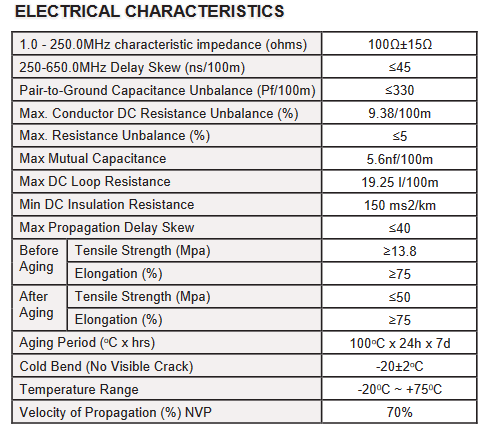

ELECTRICAL PERFORMANCE
ACRF- Attenuation to Crosstalk Ratio- FarEnd (dB/100m)
NEXT - Near End Crosstalk (dB/100m)
ACR - Attenuation to Crosstalk Ratio (dB/100m)
PSNEXT - Power Sum Near End Crosstalk (dB/100m)
ELFEXT - Equal Level Far End Crosstalk (dB/100m)
PSELFEXT - Power Sum Equal Leverl Far End Crosstalk (dB/100m)
RL - Return Loss (dB)
TCL - Transverse Conversion Loss (dB/100m)
ATT - Attenuation (dB/100m)

6ACMP234Rx - Cat6A, UTP, Non-Shielded, Plenum, 10G, 23awg/4pr, 1000' - Image 4

6ACMP234Rx - Cat6A, UTP, Non-Shielded, Plenum, 10G, 23awg/4pr, 1000' - Image 5

6ACMP234Rx - Cat6A, UTP, Non-Shielded, Plenum, 10G, 23awg/4pr, 1000' - Image 6
