Description
CAT5E 24AWG/4PAIR 350MHz U/UTP DIRECT BURIAL WATERBLOCK TAPE
The need for high speed data transfer and the reliability to complete your work is paramount to the success of your business. The 5EOUTW244RB Cat5E waterblock tape direct burial cable can serve that purpose with ease.
DESCRIPTION
24 AWG 4Pair U/UTP Category 5E cabletested to 350 MHz. Available on Wood Reels
FEATURES AND BENEFITS
- Structured cabling for Ethernet Networks
- Protects against environmental elementsthat can cause electrical performancefailures
- Prevents moisture migration
- Performance guaranteed to 350 MHz
- Sequential footage markings
- UV Resistent
- Verified by third-party for guaranteed performance
APPLICATIONS
- IEEE 802.3 1000Base-T, 100Base-TX,10Base-T, PoE, PoE+
- CDDI, Token Ring, ATM
- Armored: aerial,duct and buried installations
- Broadband and Baseband Analog Video
STANDARD COMPLIANCES
- ANSI/TIA 568-C.2
- ANSI/TIA 862 (Building Automation)
- ISO/IEC 11801 Ed. 2.0 (Class EI)
- ICEA 8-102-700 (Category 6 or 5E)
- REACH Compliant
- CPR Compliant (Fully Comply to305/2011 & EN 50575:2014-09)
- RoHS Compliant Directive 2002/95/EG

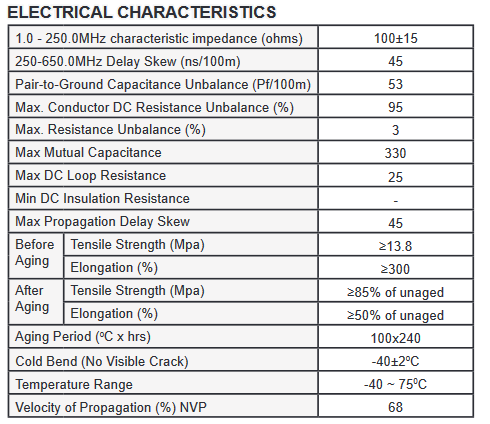

ELECTRICAL PERFORMANCE
ACRF - Attenuation to Crosstalk Ratio - Far End (dB/100m)
NEXT - Near End Crosstalk (dB/100m)
ACR - Attenuation to Crosstalk Ratio (dB/100m)
PSNEXT - Power Sum Near End Crosstalk (dB/100m)
ELFEXT - Equal Level Far End Crosstalk (dB/100m)
PSELFEXT - Power Sum Equal Leverl Far End Crosstalk (dB/100m)
RL - Return Loss (dB)
TCL - Transverse Conversion Loss (dB/100m)
ATT - Attenuation (dB/100m)
