Description
CAT5E 24AWG/4PAIR 350MHz DIRECT BURIAL U/UTP
PART NO. 5EOUT244RB
CAT5E Bulk Cable, 350MHz., Outdoor Rated, 4 Pair/24 AWG, Twisted Pair, Wooden Reel, Black, 1,000'
DESCRIPTION

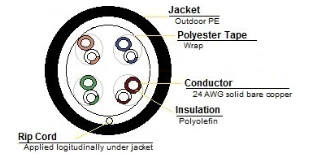

24 AWG 4Pair U/UTP Category 5E cabletested to 350 MHz. Available on Wood Reels
FEATURES AND BENEFITS
- Structured cabling for Ethernet Networks
- Protects against environmental elementsthat can cause electrical performancefailures
- Prevents moisture migration
- Performance guaranteed to 350 MHz
- Sequential footage markings
- UV Resistent
- Verified by third-party for guaranteed performance
APPLICATIONS
- IEEE 802.3 1000Base-T, 100Base-TX,10Base-T, PoE, PoE+
- CDDI, Token Ring, ATM
- Armored: aerial,duct and buried installations
- Broadband and Baseband Analog Video
STANDARD COMPLIANCES
- ANSI/TIA 568-C.2
- ANSI/TIA 862 (Building Automation)
- ISO/IEC 11801 Ed. 2.0 (Class EI)
- ICEA 8-102-700 (Category 6 or 5E)
- REACH Compliant
- CPR Compliant (Fully Comply to305/2011 & EN 50575:2014-09)
- RoHS Compliant Directive 2002/95/EG
ELECTRICAL PERFORMANCE
ACRF - Attenuation to Crosstalk Ratio - Far End (dB/100m)
NEXT - Near End Crosstalk (dB/100m)
ACR - Attenuation to Crosstalk Ratio (dB/100m)
PSNEXT - Power Sum Near End Crosstalk (dB/100m)
ELFEXT - Equal Level Far End Crosstalk (dB/100m)
PSELFEXT - Power Sum Equal Leverl Far End Crosstalk (dB/100m)
RL - Return Loss (dB)
TCL - Transverse Conversion Loss (dB/100m)
ATT - Attenuation (dB/100m)
