Description
CAT5E24AWG/4PAIRCMP 350MHz U/UTP
DESCRIPTION
24 AWG 4Pair U/UTP Category 5E cabletested to 350 MHz. Available in Pull Box /Speed Bag
FEATURES AND BENEFITS
Structured Cabling for Ethernet Networks
Unique pair twisting for balanced linesignaling
Performance guaranteed to 350 MHz
Sequential footage markings
Verified by third-party for guaranteed performance
APPLICATIONS
IEEE 802.3: 1000Base-T, 100 Base-TX,10Base-T, PoE, PoE+
CDDI, Token Ring, ATM
Digital Video
Broadband and Baseband Analog Video
STANDARD COMPLIANCES
ANSI/TIA 568-C.2
ANSI/TIA 862 (Building Automation)
ISO/IEC 11801 Ed. 2.0 (Class EI)
ICEA 8-102-700 (Category 6 or 5E)
REACH Compliant
CPR Compliant (Fully Comply to305/2011 & EN 50575:2014-09)
RoHS Compliant Directive 2002/95/EG

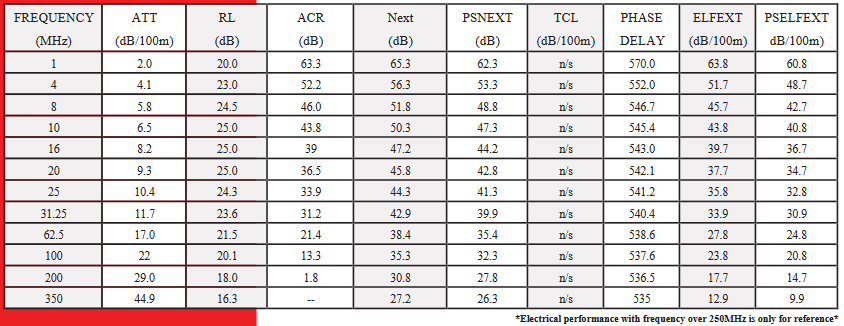

ELECTRICAL PERFORMANCE
ACRF-Attenuation to Crosstalk Ratio-FarEnd (dB/100m)
NEXT - Near End Crosstalk (dB/100m)
ACR - Attenuation to Crosstalk Ratio (dB/100m)
PSNEXT - Power Sum Near End Crosstalk (dB/100m)
ELFEXT - Equal Level Far End Crosstalk (dB/100m)
PSELFEXT - Power Sum Equal Leverl Far End Crosstalk (dB/100m)
RL - Return Loss (dB)
TCL - Transverse Conversion Loss (dB/100m)
ATT - Attenuation (dB/100m)
