Description
Features (Loaded Panels):

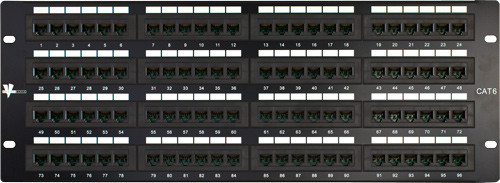

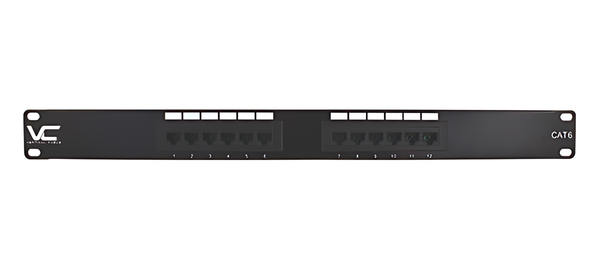

- Flexible design (12 & 24 ports for 1U; 48 ports for 2U; 96 ports for 4U)
- Made of sturdy, rolled-edge, anodized aluminum
- Fully enclosed design for protection of printed circuitry during termination.
- Color-coded for T568A and T568B wiring schemes.
- Vertical Cable CAT6 panels are designed for maximum strength and are compatible with standard 110 or Krone Installation tools.
- Our panels fit and install in standard 19 inch cabinets.
- High-density 1U/2U/4U, 19" RMS (rack mount standard) design.
- Meets EIA-310-D specifications.
- Constructed from UL94-V-0 high-impact, fire-retardant ABS or PC material.
- Pair punch sequence enables a pair twist within 1/2" of termination.
- Beryllium copper contacts: 50µ gold-plated pins over 100µ nickel layer.
- Insertion life cycle: 750 cycles (minimum) / I.D.C. 250 cycles (minimum).
- Operating temperature: -40°C to +68°C
- FCC Part 68
- 2xEIA Unit 19"(W)x3½"(H)x1¼"(D)
- UL Listed, RoHS Compliant

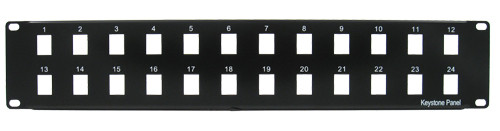

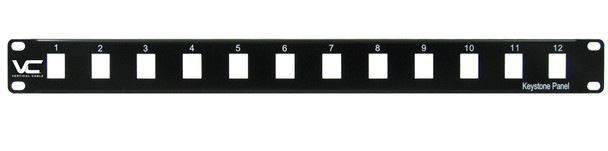

Features (Blank Panels):
- Constructed from heavy-duty 16-gauge steel and UL94-V-0 high-impact, fire-retardant material.
- Accepts either 10-24 or 12-32 screws
- Durable black powder coat finish
- Universal mounting for either left or right hinging and easy panel access
- Allowing convenient wall mounting of patch panels
- Bezels, Jacks or Inserts NOT Included
- Supports cable, and prevents strain on the connection (Cable Manager)
- Works with 4", 6", 8" Vertical Cable cable ties (Cable Manager)
- Sturdy Cable manager clips into the blank Patch Panel (Cable Manager)
