Description

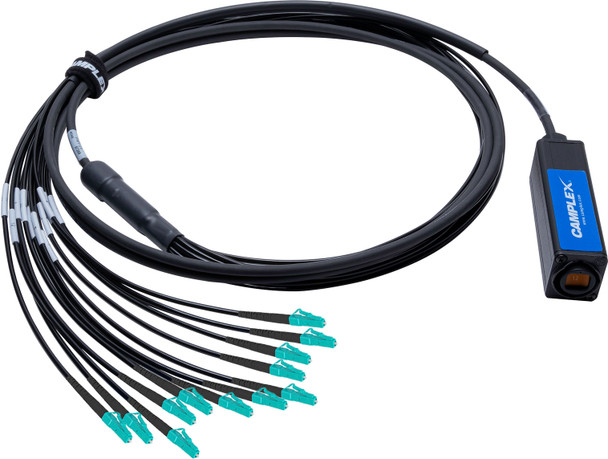

Connect your Neutrik opticalCON MTP 12 OM4 Multimode cables to standard LC fiber optic connectors with these handy in-line adapters by Camplex. Rugged ground-tactical cable, ideal for use in harsh environments where repeated deployment and reuse is required, is a standout feature on this assembly. In addition to its durability, the lightweight design is perfect to strap to cameras and other gear. The total cable is 10 foot while each individual channel fanout is clearly labeled and 2 foot in length for professional use. Supplied with opticalCON rubber dust cap for maximum protection. opticalCON MTP 12 adapters feed out to (12) individual fiber channels.
-
Features:
- Tactical OM4 Multimode Cable Ideal for Use in Harsh Environments
- Lightweight Design
- Labeled Channels
- (12) LC Connectors
- Rubber Dustcaps for Connector Protection
-
Specifications:
- Neutrik opticalCON MTP 12:
- Cable Retention: 500 N
- Insertion Force: < 45 N
- Withdrawal Force: < 45 N
- Lifetime: 2500 Mating Cycles
- Temperature Range: -40°C to 75°C (-40°F to 167°F)
- Insertion Loss: < 0.9 dB
Laser Optimized OM4 Bend Insensitive ISO/IEC 11801 Cable: - Tactical Polyurethane (C) Outer Jacket Materials is Standard; Flame-Retardant Tactical (V) and Low-Smoke Zero-Halogen (G)
- Core / Cladding Diameter (µm): 50/125
- Jacket Material: Polyurethane
- Cable Weight: 41 kg/km (28 lbs/1000')
- Cable Diameter: 6.5 mm (0.26 in)
- Min Bend Operating Radius: 3.3 cm (1.3 in)
- Operating Temperature: -40°C to 85°C (-40°F to 185°F)
- Storage Temperature: -70°C to 85°C (-94°F to 185°F)
-
Warranty:
- 1 Year
Resources
| Download the TOPADAP Datasheet |  Download |
|---|
