Description

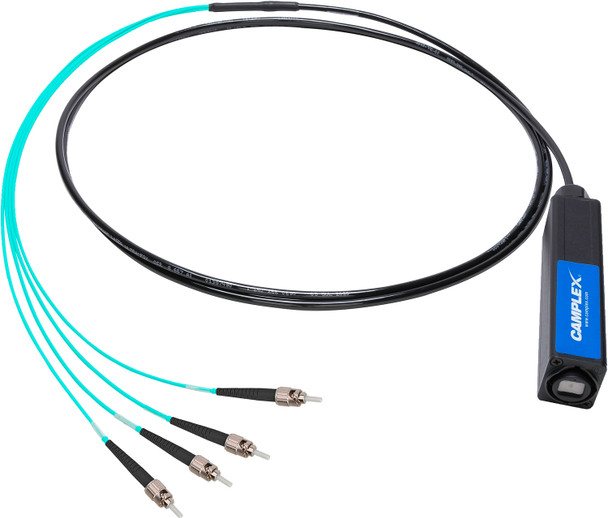

Connect your Neutrik opticalCON QUAD OM3 Multimode cables to standard ST fiber optic connectors with these handy in-line adapters by Camplex. Rugged ground-tactical cable, ideal for use in harsh environments where repeated deployment and reuse is required, is a standout feature on this assembly. In addition to its durability, the lightweight design is perfect to strap to cameras and other gear. The total cable is 10 foot while each individual channel fanout is clearly labeled and 2 foot in length for professional use. Supplied with opticalCON rubber dust cap for maximum protection. opticalCON QUAD adapters feed out to (4) individual fiber channels.
-
Features:
- Tactical OM3 Multimode Cable Ideal for Use in Harsh Environments
- Lightweight Design
- Labeled Channels
- (4) ST Connectors
- Rubber Dustcap for Connector Protection
-
Specifications:
- Neutrik NO4FDW-A:
- Insertion Force: < 45 N
- Withdrawal Force: < 45 N
- Lifetime: > 5000 Mating Cycles
- Locking Device: Push-Pull
- Insertion Loss: < 0.5 dB / Connection
D-Series 4-Fiber OM3 Multimode Military Tactical 50 Micron Cable: - Tactical Polyurethane Outer Jacket
- Ultra-Fox Plus Fiber
- Helically Stranded Cable Core
- Thick Layer of Aramid Strength Members
-
Warranty:
- 1 Year
Resources
| Download the TOPADAP Datasheet |  Download |
|---|
