Description

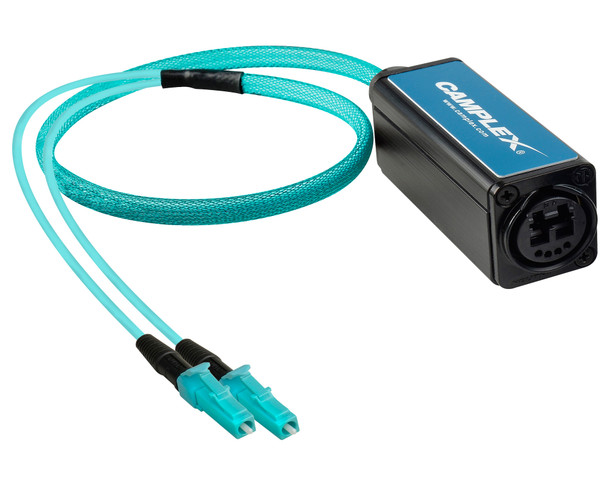

Connect your Neutrik opticalCON DUO multimode cables to standard LC fiber optic connectors with these handy in-line adapters by Camplex. Rugged yet lightweight design is perfect to strap to cameras and other gear.
Each channel is clearly numbered and 1 meter in length with Techflex protective tubing for years of professional use. Supplied with opticalCON rubber dust cap for maximum protection.
opticalCON DUO adapters feed out to duplex (2) individual fiber cable channels.
-
Features:
- OM3 Multimode Cable
- Lightweight Design
- Numbered Channels
- (2) LC Connectors
- Rubber Dustcap for Connector Protection
-
Specifications:
- Neutrik NO2-4FDW-A:
- Contact Resistance: < 7 mΩ
- Dielectric Strength: 1,5 kVdc
- Insulation Resistance: > 2 GΩ (initial)
- Rated Current Per Contact: 6 A
- Rated Voltage: < 50 V (1)
- Insertion Force< 45 N
- Withdrawal Force: < 45 N
- Lifetime: > 5000 mating cycles
- Chassis Shape: D
- Contacts: Bronze (CuSn6)
- Insert: Polyamide (PA 6, PBT 30 % GR, PBT 50 % GR)
- Shell: Zinc diecast (ZnAl4Cu1)
- Shell Plating: Black Chromium
Camplex Fiber Optic Patch Cable Multimode Duplex LC to LC: - 10-Gigabit application support
- Duplex Cable in a Zipcord Style
- Features a Laser-Optimized 50 ? Core and 125 ? Cladding
- Use With Both LED and VCSEL Laser Light Sources
- Ceramic Ferrules for Long-lasting Reliability and Precision Alignment
- OFNR Jacket Complies with Stringent Building Codes
-
Warranty:
- 1 Year
