Description

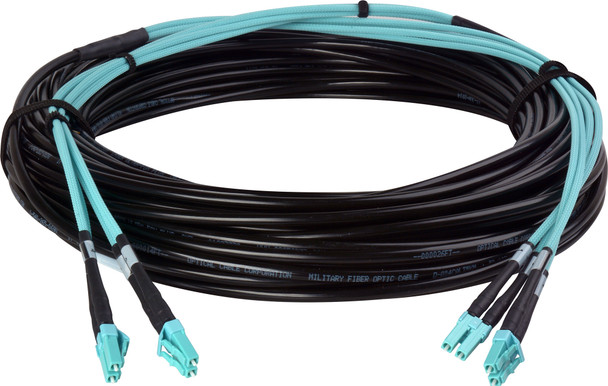

2-Channel OM3 Multimode fiber optic tactical snake cable designed for multiple deployments for field production in outside broadcast, rental houses and more. Highly flexible tight-buffered tactical cables with internal aramid strength members for crush resistance in high traffic areas if handled properly and a polyurethane outer sheath designed to withstand crushing by both Military Tanks and Outside Broadcast vehicles. Cables are complete end-to-end tactical grade where fanout channels are covered with tactical grade polyurethane furcation tubing. All assemblies multi-stage machine polished and tested for less than .55db RL (complete per-channel test results available on request). Built in-house at our state-of-the-art fiber lab - the only fiber lab in the US to have achieved full certification from LEMO, Neutrik & Canare!
Custom configurations and assemblies as well as full repair services are always available for any brand tactical or SMPTE hybrid fiber cable.
-
Features:
- Built in our Fiber Shop with OCC Multichannel Tactical Cable & Heavy Duty Connectors with Dust Caps
- Individual 36-Inch Fanout Channels Protected with Polyurethane Tactical Furcation Tubing
- Compact, round cable design for ease of transportation and deployment
- Designed for use in adverse environments where reduced size and weight are important
- Helically stranded cable core for flexibility, deployment survivability and exceptional mechanical protection for the optical fibers
- Cables have been tested and are in use in military data communications applications worldwide
- Can be used outdoors for temporary deployment directly on the ground in all terrains, including severe environments
- Suitable for outside broadcast, industrial, mining and petrochemical environments - chemical resistant
- Crush-resistant and resilient with a thick layer of aramid strength members
- Polyurethane jacketed for abrasion, cut and chemical resistance
- Meets & Exceeds MIL-PRF-85045 Specifications!
-
Specifications:
- Fanouts are color coded with Aqua or Blue to indicate OM3 Laser Enhanced Fiber Type 10G Ethernet compatible.
- The cable features an extremely strong, lightweight, rugged tight-buffered cable for commercial, broadcast and military applications.
- Suitable for Broadcast, Industrial, Mining and Petrochemical environments.
- Crush resistant and resilient with a thick layer of aramid strength members.
- Polyurethane jacket for abrasion, cut and chemical resistance.
- Operating Temperature -55°C to +85°C (Storage -70°C to +85°C)
- Impact Resistance 200 Impacts (EIA/TiA-455-25A)
- Crush Resistance 440N/cm
- Flex Resistance 2,000 cycles
- Machine polished UPC Connectors, Back Reflection is <-55dB RL (Typical)
- Gigabit Ethernet Max Distance: 5km @ 1310nm (Singlemode)
- Gigabit Ethernet Max Distance: 600m @ 1310 (Multimode)
- Attenuation: < 0.5dB/km @1310
- Attenuation: < 1.5dB/km @1310
