Description

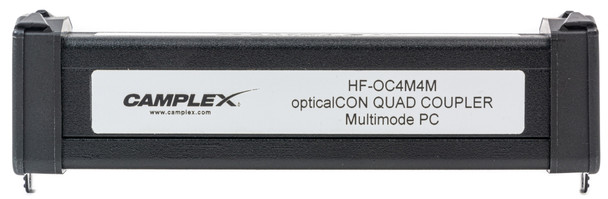

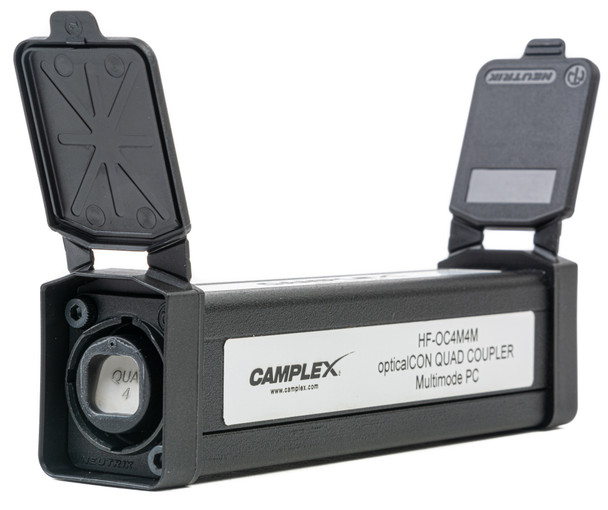

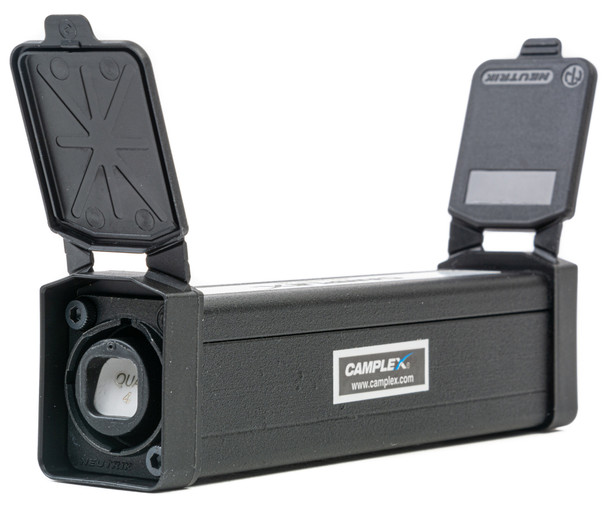

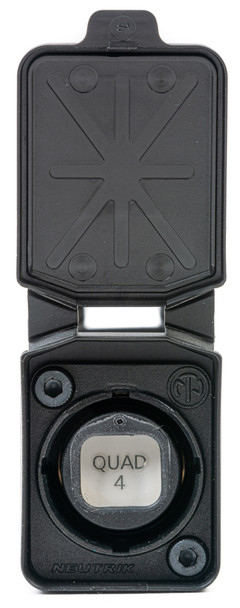

When you need a simple solution to join two multimode opticalCON QUAD cables together, the Camplex HF-OC4M4M offers an easy fix. It extends your opticalCON QUAD run in a field tough, black powder coated housing. The Camplex HF-OCMS4M features flip up dust covers and an automatic shutter on each mating connector.
-
Features:
- Inline opticalCON Coupler with Minimal Loss
- Durable Black Powder-Coated Aluminum Housing
- Dimensions: 5.44 x 1.13 x 1.63 inches
- Weight: 4.7 oz
-
Specifications:
- Electrical
- Contact resistance: < 7 mΩ
- Dielectric strength: 1,5 kVdc
- Insulation resistance: > 2 G? (initial)
- Rated current per contact: 6 - 10 A (Contact 1+4 10 A, Contact 2+3 6 A)
- Rated voltage L < 50 V (1)
- Mechanical
- Insertion force: < 45 N
- Withdrawal force: < 45 N
- Lifetime: > 1000 mating cycles
- Locking device: Push-Pull
- Material
- Contact plating: 0.2 æm Au over 2 æm Ni
- Contacts: Bronze (CuSn6)
- Insert: Polyamide (PA 6, PBT 30 % GR, PBT 50 % GR)
- Shell: AlMgSi 0.5, black plated
- Split sleeve: ceramics
- Optical
- Insertion loss: < 0.5 dB / connection
-
Warranty:
- 1 Year
