Description

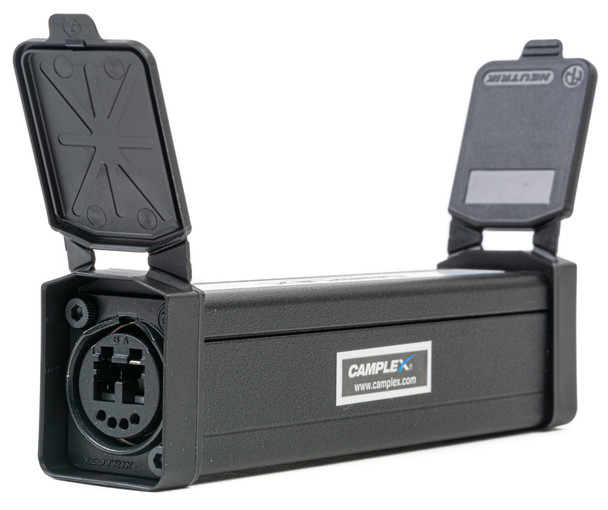

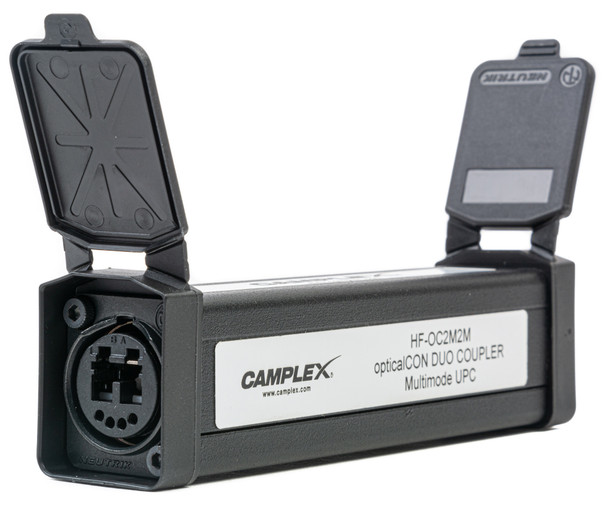

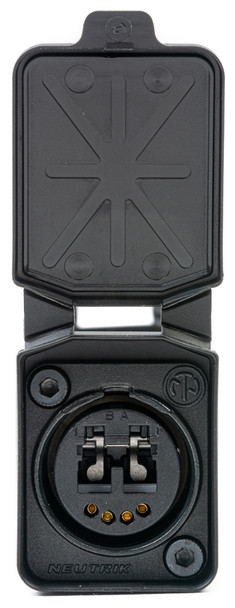

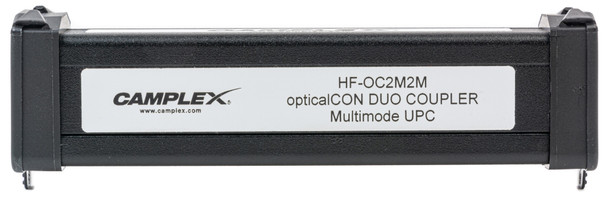

When you need a simple solution to join two multimode opticalCON DUO cables together, the Camplex HF-OC2M2M offers an easy fix. It extends your opticalCON DUO run in a field tough, black powder coated housing. The coupler features flip up dust covers and an automatic shutter on each mating connector.
-
Features:
- Inline opticalCON Coupler with Minimal Loss
- Durable Black Powder-Coated Aluminum Housing
- Dimensions: 5.44 x 1.13 x 1.63 inches
- Weight: 5.9 oz
-
Specifications:
- Mechanical
- Insertion force: < 45 N
- Withdrawal force: < 45 N
- Lifetime: > 1000 mating cycles
- Locking device: Push-Pull
- Material
- Contact plating: 0.2 æm Au over 2 æm Ni
- Contacts: Bronze (CuSn6)
- Insert: Polyamide (PA 6, PBT 30 % GR, PBT 50 % GR)
- Shell: AlMgSi 0.5, black plated
- Split sleeve: ceramics
- Optical
- Insertion loss: < 0.5 dB / connection
-
Warranty:
- 1 Year
Resources
| Camplex Good Better Best opticalCON Fiber Assemblies |  Download |
|---|
