Description

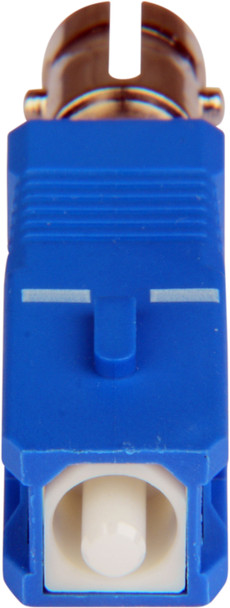

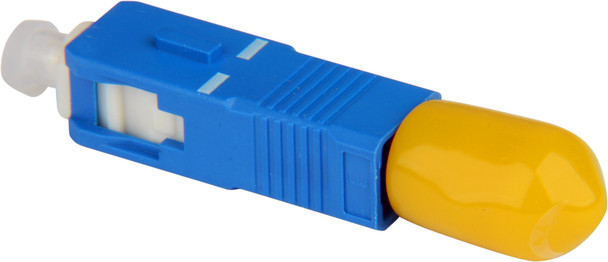

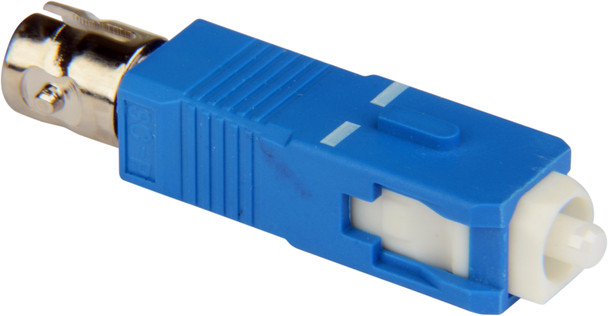

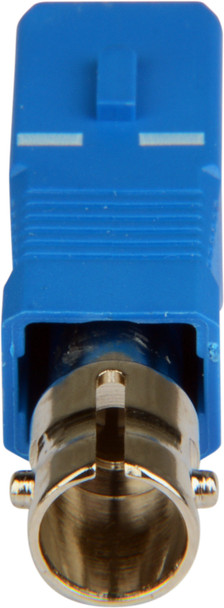

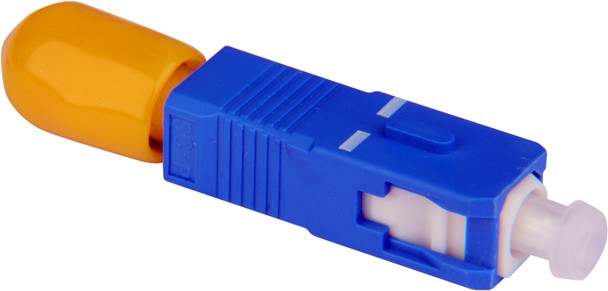

Metal ST Female to SC Male Simplex Singlemode Fiber Optic Adapter. This inline adapter provides the link between fiber networking devices, fiber optic extenders, fiber converters, SFPs and similar for a quick and simple fiber change-over.
-
Features:
- ST Female to SC Male UPC Connectors
- Singlemode, Simplex
- Multimode Compatible
- Rugged Polymer/Metal Outer Body
- Durable Ceramic/Phosphor Bronze Sleeve
- Minimal Insertion Loss
- Non Flange Design
-
Specifications:
- Insertion Loss: ≤0.3dB
- Return Loss: ≥ 50dB
- Mating Cycles: 500
Resources
| Download the Data Sheet (pdf) |  Download |
|---|
