Description

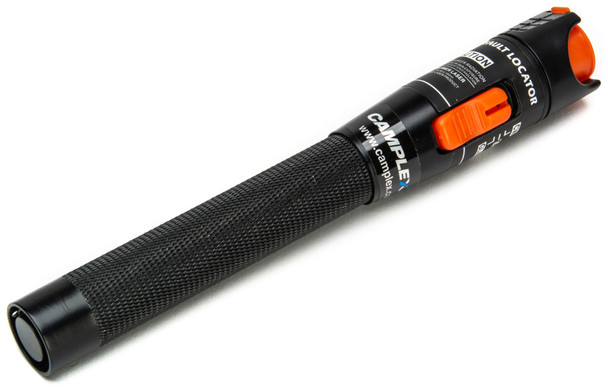

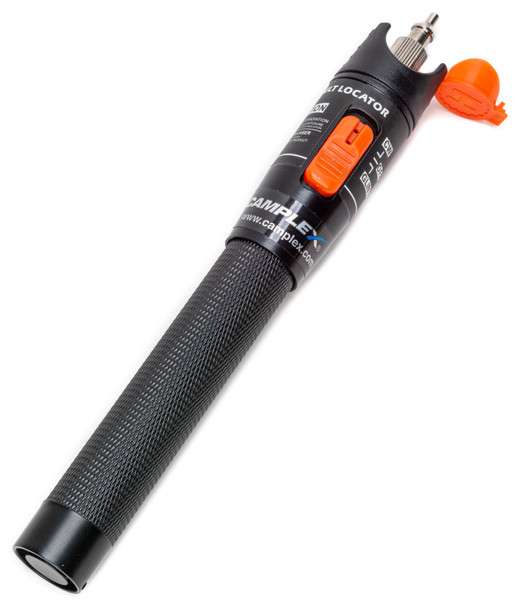

Demystify the process of finding signal loss and breaks in your fiber cables with the Camplex TL-1504 Visual Fault Locator. The TL-1504 has two modes of operation and locates breaks and bends up to 10kM (output power of 10mW).
The two operating modes consist of CW, continuous wave, for a steady fault illumination, or GLINT, a modulated output. The TL-1504 works with all standard fiber optic cables including LC, ST, FC and SC terminations.
-
Features:
- Tests fiber cables with LC, ST, SC and FC connectors
- Compact Unit with Two Operating Modes

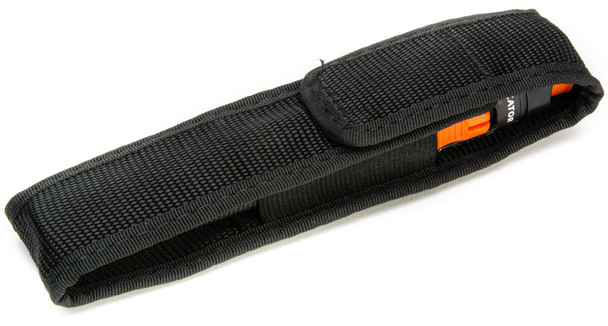

- Belt Holster with Velcro Closing & Dust Cap

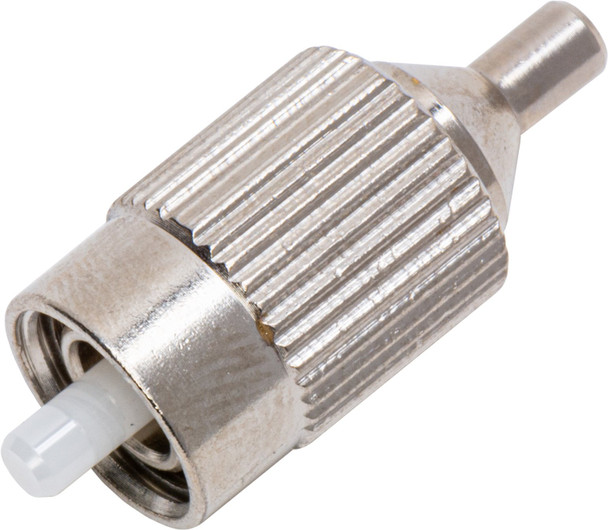

- Includes 2.5mm to 1.25mm adapter for use with LC connectors
- Rugged Black Aluminum
- LED Power Indicator
-
Specifications:
- Output Power: 10mW
- Maximum Distance: 10KM
- Interface: 2.5 mm
- Wavelength 650nm ± 10nm
- Pulse Frequency: 2Hz to 3Hz
- Battery life: >60 hrs
- Dimensions (Length): 6.75in
- Weight: 4.16 oz packaged
-
Item Includes:
- Belt Holster
- 2 AA Batteries

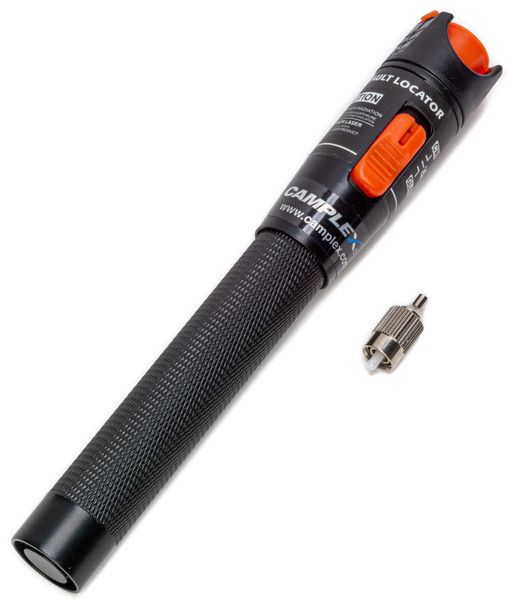

- CMX-TL-1503 2.5mm to 1.25mm VFL LC Adapter
