Description
Never again will you arrive at an outside production unprepared with the Camplex TAC-ALL Series cable reel. The Tac-All is a 12-channel cable combining several channels of single mode, OM3 multimode and OM1 multimode tactical fibers under a single homerun jacket.

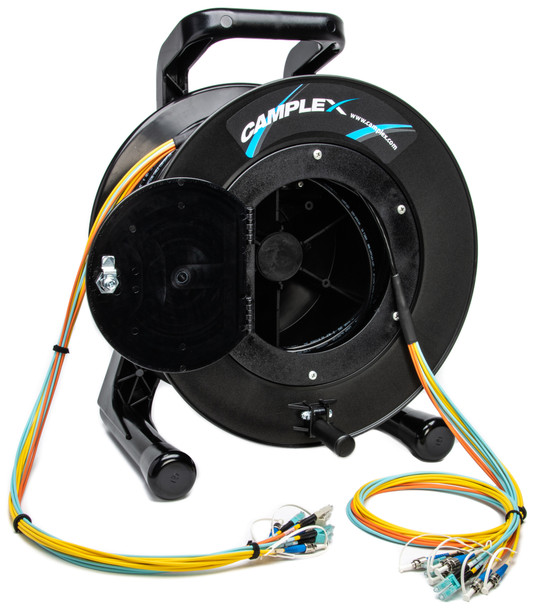

The 500 foot Camplex TAC-ALL TARLCST-500 delivers 6 ST single mode channels, 4 LC OM3 multimode channels, and 2 LC OM1 multimode channels so you are prepared to connect to almost any mode of video, audio, ethernet or control fiber extender. Add a Camplex Tac Adapter to your kit and you’re ready for any fiber connection!
Cables are assembled in the Camplex fiber lab with the finest quality tactical cable, tactical grade furcation fanouts, Senko connectors and a field tough cable reel.
-
Features:
- Built with Multichannel Tactical Cable & Heavy-Duty Connectors with Dust Caps
- Extremely Strong, Lightweight, Rugged, Tight-Buffered Cables Designed for Military Tactical Field Use and Commercial Applications
- Core-locked Jacket for Improved Mechanical Performance
- Polyurethane Jacketed for Abrasion, Cut and Chemical Resistance
- Thick Layer of Aramid Strength Members for Crush Resistance
- Designed for Outdoor Adverse Environments Where Reduced Size and Weight are Important
- Helically Stranded Cable Core for Flexibility and Exceptional Mechanical Protection
- Chemical Resistance Suitable for Outside Broadcast, Industrial, Mining and Petrochemical Environments
- Ultra-Fox Plus Fiber (500µm) used for Environmental and Mechanical Protection
-
Specifications:
- OD: 6.5mm (0.26in)
- Crush Resistance: 1,800 N/cm
- Flex Resistance: 2,000 Cycles
- Core/Cladding Diameter (?m): 62.5/125 OM1, 50/125 OM3, 9/125 Single Mode
